Shop OSG

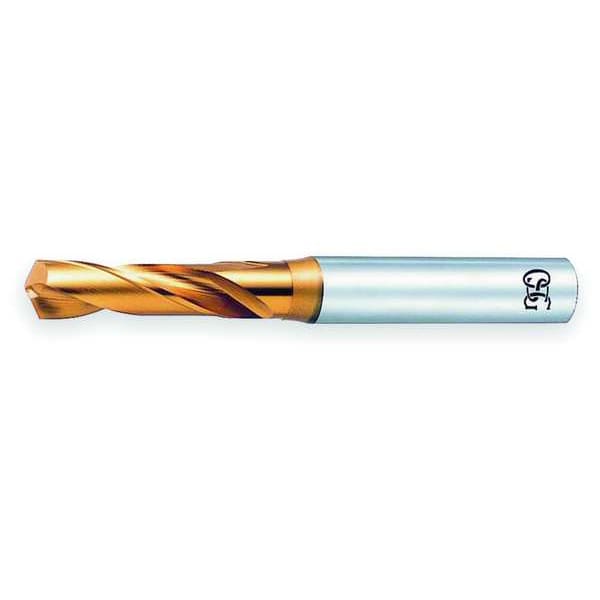

Screw Machine Drill Bit, #4 Size, 130 Degrees Point Angle, Cobalt Steel, TiN Finish, Spiral Flute

  • Mfr # 10209005

  • Zoro # G2387585

product price:  $34.19
/ea

Key Features

Overall Length
77 mm
Flute Length
31 mm
Number of Flutes
2
Material - Machining
Cobalt
Finish - Machining
TiN
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10209005
Zoro #
G2387585
UPC #
-
Country of Origin
Japan

Dimensions

Drill Bit Size
#4
Overall Length
77 mm
Flute Length
31 mm
Shank Dia.
1/4 in
Depth:Dia. Ratio
3xD
Maximum Drilling Depth
1 1/4 in
Drill Diameter Tolerance
+0.000 mm/-0.018 mm
Shank Length
46 mm
Drill Length Class
Screw-Machine Length

Details

Item
Screw Machine Drill Bit
Number of Flutes
2
Material - Machining
Cobalt
Finish - Machining
TiN
Drill Bit Point Angle
130 Degrees
Cutting Direction
Right Hand
Grade
High Performance
Drill Bit Grouping
Drill Bit
Flute Type
Spiral
Decimal Equivalent
0.2090
List Number
1000
Standards
Not Rated
Series
EX-Gold
Coolant Fed
Non-Coolant Through
Sheeter Drill
No
Drill Bit Point Type
R Thinning Point
Secondary Material Application
Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel
Shank Type - Machining
Straight
Material Grade - Machining
High Performance
Primary Material Application
Steel, Tool and Die Steel
Measurement System
Wire
Primary Material Application ISO Code
M, N, P
Secondary Material Application ISO Code
H, K, M, N, P
Spiral Direction
Right Hand
Helix Angle - Maximum
25 Degrees

Description

Screw Machine Drill Bit, Drill Bit Size #4, Drill Bit Point Angle 130 Degrees , R Thinning Point, Cobalt, TiN, Non-Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.2090
