Shop OSG

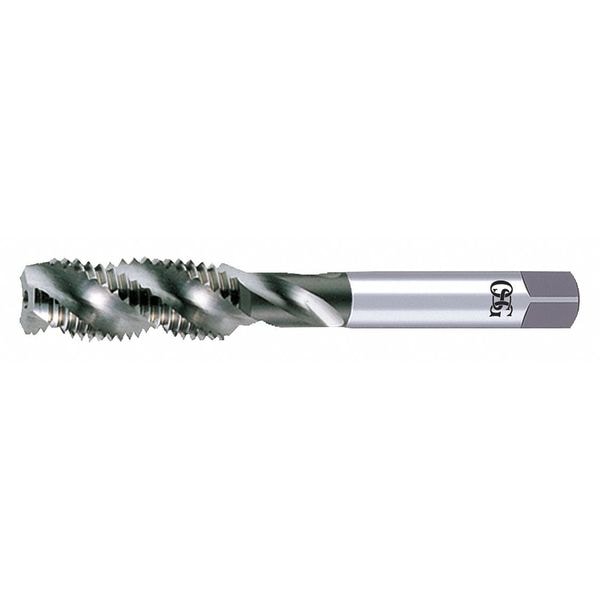

Spiral Flute Tap, Bottoming, 2

  • Mfr # 8003600

  • Zoro # G9242466

product price:  $20.69
/ea

Key Features

Overall Length
2 in
Tap Style
Spiral Flute
Tap Size
#4
Shank Dia.
0.110"
Tap Dimension Type
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8003600
Zoro #
G9242466
UPC #
-
Country of Origin
Brazil

Dimensions

Overall Length
2 in
Tap Size
#4
Shank Dia.
0.110"
Tap Dimension Type
Inch
Tap Thread Size
#4-40
Pitch Diameter Limit
H2
Thread Length
11/16"
55% Thread Drill Size
3/32 in
Square Size
0.1090 in
65% Thread Drill Size
2.30 mm
Thread Size
#4-40
75% Thread Drill Size
2.20 mm
Shank Length
1 19/64 in
Square Width
0.109 in
Shank Diameter
7/50 in
Square Length
0.109 in

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Bottoming
Tap Material
High Speed Steel
Number of Flutes
2
Measurement System
Pipe
Number of Pieces
1
Tap Finish
Bright (Uncoated)
Thread Direction
Right Hand
List Number
S108
Tap Thread Type
UNC
Tap Grouping
STI Tap
Cutting Direction - Machining
Right Hand
Series
S108
Threads per Inch
40
Primary Material Application
Aluminum, Cast Iron, Steel
Thread Limit
H2
Shank Type - Machining
Straight
Extended Neck
Yes
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
K, N, P
Thread Standard
UNC
Material Grade - Machining
S108
Helix Angle
50 Degrees
Tap Application
Blind Hole
Class of Fit
2B-3B
Shank Type
Straight

Description

Screw Thread Insert STI Tap, Thread Size #4-40, UNC, Overall Length 2 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 0.251 in, Tap Chamfer Bottoming, Thread Limit H2, Class of Fit 2B-3B, Number of Flutes 2
