Shop OSG

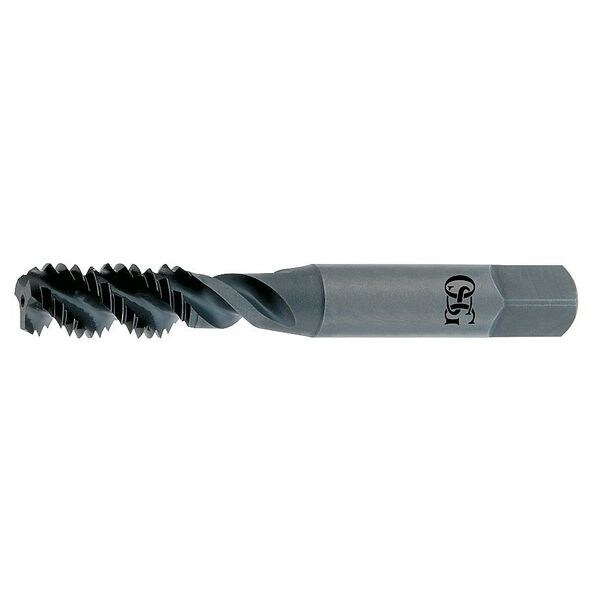

Spiral Flute Tap Bottoming, 3 Flutes

  • Mfr # 2988305

  • Zoro # G2753414

product price:  $17.89
/ea

Key Features

Overall Length
64.00mm
Tap Style
Spiral Flute
Shank Dia.
6.50mm
Tap Chamfer
Bottoming
Tap Dimension Type
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2988305
Zoro #
G2753414
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
64.00mm
Shank Dia.
6.50mm
Tap Dimension Type
Metric
Tap Size
M6
Thread Length
25.00mm
Tap Thread Size
M6-1.00
Shank Length
1 1/2 in
75% Thread Drill Size
5.00
Drill Bit Size
4.96mm, 5.03mm, 5.09mm, 5.16mm, 5.22mm
Thread Size
M6x1
65% Thread Drill Size
13/64 in
Square Size
0.1910 in
55% Thread Drill Size
5.25 mm
Size
M6
Pitch Diameter Limit
Not Rated
Square Length
7.94 mm
Shank Diameter
6.48 mm
Square Width
4.85 mm
Neck Length
25.4 mm
Wire Rope Length
63.5 mm

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Tap Grouping
Tap
Standards
ANSI
Tap Finish
TiN
Tap Thread Type
Metric Coarse
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
298
Shank Type - Machining
Straight
Thread Standard
Metric
Helix Angle
50 Degrees
Thread Pitch
1.00mm
Features
2B and 6H Class of Fits Eliminates guess work associated with H and D limits, Bright, HSS material Increased wear resistance, Slow spiral Efficient chip evacuation, Spiral Flute For blind hole applications, Steam Oxide surface treatment S/O increases mechanical lubricity, TiCN coating Improves wear resistance for extended tap life
Spiral Direction
Right Hand
Primary Material Application ISO Code
P
Secondary Material Application ISO Code
N
Coolant Fed
Non-Coolant Through
Measurement System
Metric
Extended Neck
Yes
Primary Material Application
Steel
Secondary Material Application
Aluminum
Class of Fit
6H
Number of Pieces
1
List Number
298
Tap Application
Blind Hole
Shank Type
Square

Description

Spiral Flute Tap, Thread Size M6x1, Metric, Overall Length 63.5 mm, High Speed Steel, TiN, Thread Length 15.18 mm, 75 Percent Thread Drill Size 5.00, Thread Limit Not Applicable, Class of Fit 6H, Thread Direction Right Hand, Number of Flutes 3
