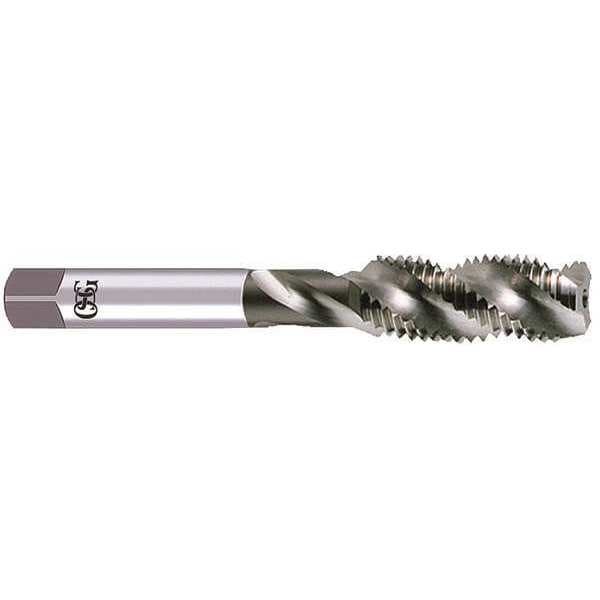

Osg Spiral Flute Tap, Bottoming, 3 Flutes 8007200 - main

Spiral Flute Tap, Bottoming, 3 Flutes

  • Mfr # 8007200

  • Zoro # G9242484

product price: $22.36
/ea

Key Features

Overall Length
2-3/8"
Tap Style
Spiral Flute
Shank Dia.
0.165"
Tap Chamfer
Bottoming
Tap Dimension Type
Inch
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8007200
Zoro #
G9242484
UPC #
-
Country of Origin
Brazil

Dimensions

Overall Length
2-3/8"
Shank Dia.
0.165"
Tap Dimension Type
Inch
Tap Size
#8
Thread Length
15/16"
Pitch Diameter Limit
H3
Tap Thread Size
#8-32
65% Thread Drill Size
3.50 mm
55% Thread Drill Size
3.60 mm
Shank Length
1 7/16 in
Thread Size
#8-32
75% Thread Drill Size
3.40 mm
Square Size
0.1640 in

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Tap Thread Type
UNC
Tap Finish
Bright
Number of Pieces
1
List Number
S108
Tap Grouping
STI Tap
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
S108
Primary Material Application
All Materials
Coolant Fed
Non-Coolant Through
Extended Neck
Yes
Material Grade - Machining
S108
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Primary Material Application ISO Code
H, K, M, N, O, P, S
Shank Type - Machining
Straight
Secondary Material Application ISO Code
K, N, P
Measurement System
Pipe
Thread Standard
UNC
Thread Limit
H3
Threads per Inch
32
Helix Angle
50 Degrees

Description

Screw Thread Insert STI Tap, Thread Size #8-32, UNC, Overall Length 2 3/8 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 0.311 in, Tap Chamfer Bottoming, Thread Limit H3, Class of Fit 2B-3B, Number of Flutes 3
