  11. Spiral Flute Tap, Modified Bottoming, 2

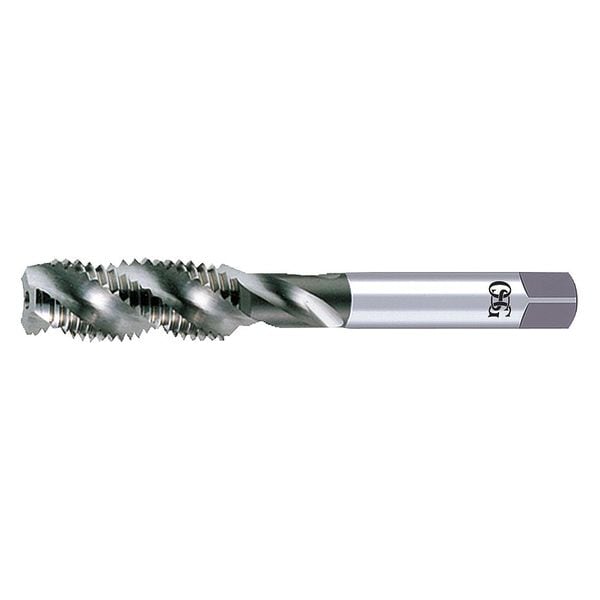

Osg Spiral Flute Tap, Modified Bottoming, 2 10900100 - main

Spiral Flute Tap, Modified Bottoming, 2

  • Mfr # 10900100

  • Zoro # G9306893

product price: $35.29
/ea

Key Features

Overall Length
48.00mm
Tap Style
Spiral Flute
Tap Size
M2
Shank Dia.
3.58mm
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10900100
Zoro #
G9306893
UPC #
-
Country of Origin
Brazil

Dimensions

Overall Length
48.00mm
Tap Size
M2
Shank Dia.
3.58mm
Tap Dimension Type
Metric
Pitch Diameter Limit
D2
Tap Thread Size
M2-0.40
Thread Length
14.00mm
Shank Length
34.00 mm
Square Size
2.79 mm
75% Thread Drill Size
1.60 mm
Thread Size
M2x0.4
55% Thread Drill Size
#51
65% Thread Drill Size
1.65 mm

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
High Speed Steel
Number of Flutes
2
Measurement System
Metric
Tap Grouping
STI Tap
Tap Finish
Bright
Tap Thread Type
Metric Coarse
Thread Direction
Right Hand
Number of Pieces
1
List Number
S109
Cutting Direction - Machining
Right Hand
Series
S109
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Extended Neck
Yes
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Primary Material Application ISO Code
H, K, M, N, O, P, S
Secondary Material Application ISO Code
K, N, P
Thread Pitch
0.40mm
Thread Limit
D2
Thread Standard
Metric Coarse
Primary Material Application
All Materials
Features
For Blind Hole Applications, Hss Material, Increased Wear Resistance, Screw Thread Insert Capability, Spiral Flute
Material Grade - Machining
S109
Helix Angle
50 Degrees

Description

Screw Thread Insert STI Tap, Thread Size M2x0.4, Metric, Overall Length 46 mm, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 12 mm, Tap Chamfer Modified Bottoming, Thread Limit D2, Class of Fit 2B-3B, Number of Flutes 2
