Shop OSG

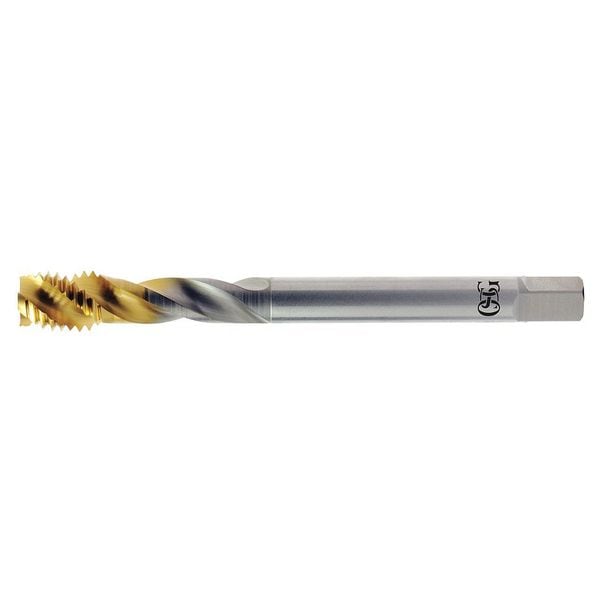

Spiral Flute Tap, Modified Bottoming, 2

  • Mfr # 1645505084

  • Zoro # G9271096

product price:  $46.39
/ea

Key Features

Overall Length
70.00mm
Tap Style
Spiral Flute
Shank Dia.
5.00mm
Tap Chamfer
Modified Bottoming
Tap Dimension Type
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1645505084
Zoro #
G9271096
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
70.00mm
Shank Dia.
5.00mm
Tap Dimension Type
Metric
Tap Size
M5
Thread Length
8.00mm
Tap Thread Size
M5-0.80
Tap Length Standard
DIN
Square Size
3.86mm
75% Thread Drill Size
4.20
Shank Length
45.00 mm
55% Thread Drill Size
4.40 mm
Thread Size
M5x0.8
65% Thread Drill Size
4.30 mm
Drill Bit Size
4.17mm, 4.22mm, 4.27mm, 4.32mm, 4.38mm
Size
M5
Pitch Diameter Limit
D4
Shank Diameter
4.92 mm
Neck Length
25 mm
Square Length
6.35 mm
Square Width
3.86 mm

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
High Speed Steel
Number of Flutes
2
Tap Finish
TiN
Thread Direction
Right Hand
Tap Thread Type
Metric Coarse
Tap Grouping
Tap
Cutting Direction - Machining
Right Hand
Series
16455
Primary Material Application ISO Code
M, P
Thread Pitch
0.80mm
Thread Standard
Metric
Shank Type - Machining
Straight
Spiral Direction
Right Hand
Features
DIN Overall Length, Variable Helix
Thread Limit
D4
Primary Material Application
Stainless Steel, Steel
Helix Angle
45 Degrees
Tap Shank Standard
ANSI
Extended Neck
Yes
Coolant Fed
Non-Coolant Through
Measurement System
Metric
Number of Pieces
1
List Number
16455
Tap Application
Blind Hole
Standards
DIN
Shank Type
Square
Secondary Material Application ISO Code
M, P
Secondary Material Application
Stainless Steel, Steel
Class of Fit
4H-6H

Description

Spiral Flute Tap, Thread Size M5x0.8, Metric, Overall Length 70 mm, Vanadium High Speed Steel, TiN, Thread Length 6.4 mm, 75 Percent Thread Drill Size 4.20, Thread Limit D4, Class of Fit 4H-6H, Thread Direction Right Hand, Number of Flutes 2
