Shop OSG

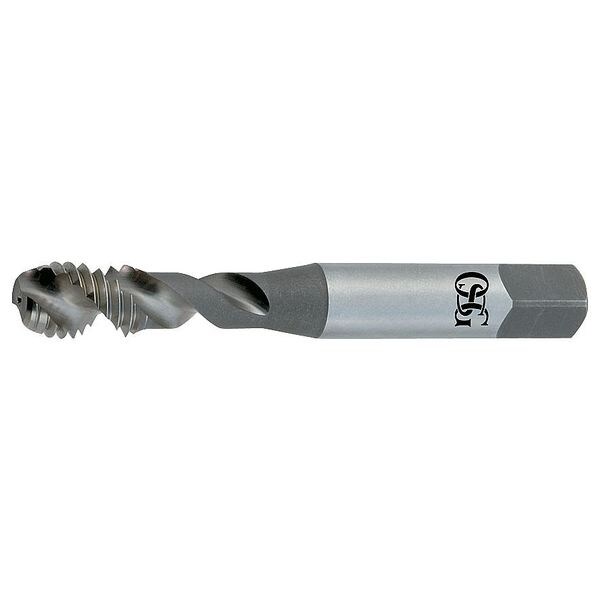

Spiral Flute Tap, Modified Bottoming, 2

  • Mfr # 2963400

  • Zoro # G9242387

product price:  $30.39
/ea

Key Features

Overall Length
53.00mm
Tap Style
Spiral Flute
Tap Size
M4
Shank Dia.
3.20mm
Tap Dimension Type
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2963400
Zoro #
G9242387
UPC #
-
Country of Origin
Brazil

Dimensions

Overall Length
53.00mm
Tap Size
M4
Shank Dia.
3.20mm
Tap Dimension Type
Metric
Tap Thread Size
M4-0.70
Thread Length
19.00mm
Square Size
3.33mm
65% Thread Drill Size
3.40 mm
Shank Length
35.00 mm
Thread Size
M4x0.7
75% Thread Drill Size
3.30
Drill Bit Size
3.27mm, 3.32mm, 3.36mm, 3.41mm, 3.45mm
55% Thread Drill Size
3.50 mm
Size
M4
Pitch Diameter Limit
D4
Square Length
3.33 mm
Square Width
3.33 mm
Shank Diameter
4.26 mm

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
High Speed Steel
Number of Flutes
2
Measurement System
Metric
Tap Thread Type
Metric Coarse
Tap Grouping
Tap
Tap Finish
Bright (Uncoated)
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
296
Thread Standard
Metric
Helix Angle
50 Degrees
Thread Pitch
0.70mm
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Extended Neck
Yes
Primary Material Application ISO Code
N
Thread Limit
D4
Features
Complete Offering, Efficient chip evacuation, For blind hole applications, HSSE material, Inch and Metric, Increased wear resistance, Slow spiral, Spiral Flute
Material Grade - Machining
Bright
Spiral Direction
Right Hand
Primary Material Application
Aluminum, Brass, Bronze, Copper
List Number
296
Number of Pieces
1
Shank Type
Straight

Description

Spiral Flute Tap, Thread Size M4x0.7, Metric, Overall Length 54 mm, High Speed Steel, Bright (Uncoated), Thread Length 5 mm, 75 Percent Thread Drill Size 3.30, Thread Limit D4, Thread Direction Right Hand, Number of Flutes 2
