  11. Spiral Flute Tap Modified Bottoming, 2 Flutes

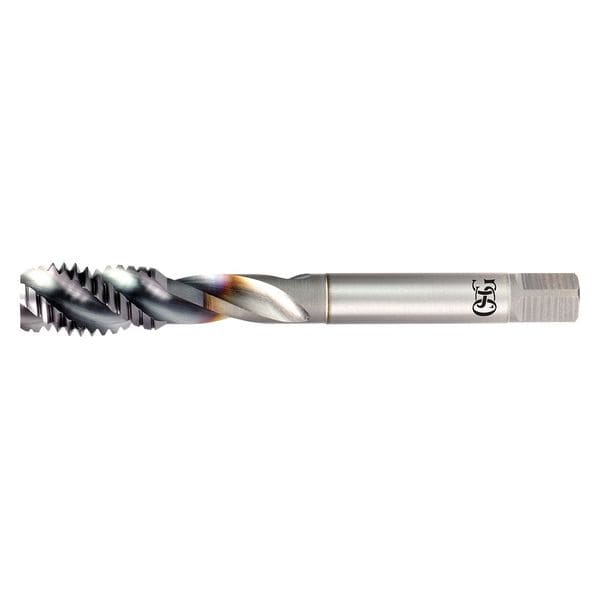

Osg Spiral Flute Tap Modified Bottoming, 2 Flutes 1650500708 - main

Spiral Flute Tap Modified Bottoming, 2 Flutes

  • Mfr # 1650500708

  • Zoro # G7476332

product price: $31.19
/ea

Key Features

Overall Length
2-13/64"
Tap Style
Spiral Flute
Shank Dia.
0.141"
Tap Chamfer
Modified Bottoming
Tap Dimension Type
Inch
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1650500708
Zoro #
G7476332
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
2-13/64"
Shank Dia.
0.141"
Tap Dimension Type
Inch
Tap Size
#6
Thread Length
25/32"
Tap Thread Size
#6-40
55% Thread Drill Size
#31
Square Size
0.1090 in
Tap Length Standard
DIN
Thread Size
#6-40
65% Thread Drill Size
#32
75% Thread Drill Size
#36
Shank Length
1 13/32 in
Drill Bit Size
0.1120 in, 0.1136 in, 0.1153 in, 0.1169 in, 0.1185 in
Size
#6
Pitch Diameter Limit
H2

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
Powdered Metal
Number of Flutes
2
Thread Direction
Right Hand
Tap Thread Type
UNF
Tap Finish
TiCN
Tap Grouping
Tap
Standards
ANSI, DIN
Cutting Direction - Machining
Right Hand
Series
16505
Threads per Inch
40
Helix Angle
Variable
Material Grade - Machining
16505, VC-10
Primary Material Application
Hardened Steel, Stainless Steel, Steel
Thread Limit
H2
Thread Standard
UNF
Primary Material Application ISO Code
H, M, P
Shank Type - Machining
Straight
Secondary Material Application ISO Code
K, N, P
Coolant Fed
Non-Coolant Through
Secondary Material Application
Aluminum, Cast Iron, Steel
Extended Neck
Yes
Tap Shank Standard
DIN
Measurement System
Pipe
Features
Sharp Cutting Edge
Number of Pieces
1
List Number
16505

Description

Spiral Flute Tap, Thread Size #6-40, UNF, Overall Length 2 13/64 in, Powdered Metal, V, Thread Length 1/4 in, 75 Percent Thread Drill Size #36, Thread Limit H2, Class of Fit 2B-3B, Thread Direction Right Hand, Number of Flutes 2
