  11. Spiral Flute Tap, Modified Bottoming, 3

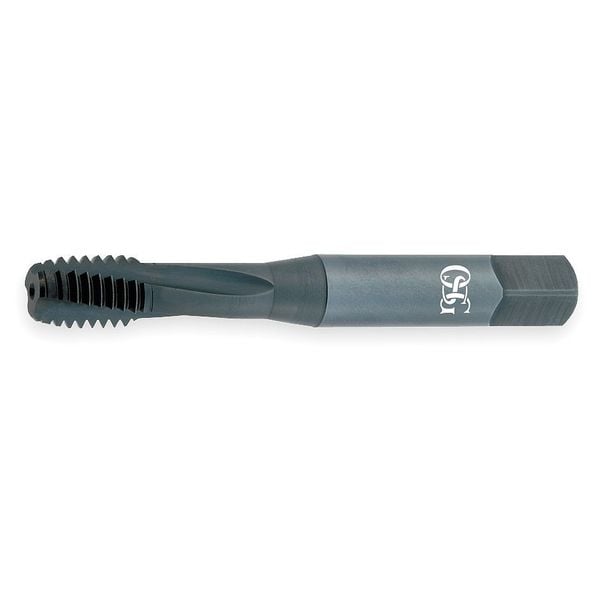

Osg Spiral Flute Tap, Modified Bottoming, 3 1705601 - main

Spiral Flute Tap, Modified Bottoming, 3

  • Mfr # 1705601

  • Zoro # G1018841

product price: $36.19
/ea

Key Features

Overall Length
53.00mm
Tap Style
Spiral Flute
Shank Dia.
4.10mm
Tap Chamfer
Modified Bottoming
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1705601
Zoro #
G1018841
UPC #
-
Country of Origin
Brazil

Dimensions

Overall Length
53.00mm
Shank Dia.
4.10mm
Tap Dimension Type
Metric
Tap Size
M4
Thread Length
19.00mm
Tap Thread Size
M4-0.70
Shank Length
35.00 mm
Square Size
3.33mm
55% Thread Drill Size
3.50 mm
65% Thread Drill Size
3.40 mm
Drill Bit Size
3.27mm, 3.32mm, 3.36mm, 3.41mm, 3.45mm
75% Thread Drill Size
3.30
Thread Size
M4x0.7
Size
M4
Pitch Diameter Limit
D6

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
Powdered Metal
Number of Flutes
3
Tap Finish
Oxide
Tap Grouping
Tap
Tap Thread Type
Metric Coarse
Thread Direction
Right Hand
Standards
ANSI
Series
345
Cutting Direction - Machining
Right Hand
Tap Shank Standard
ANSI
Secondary Material Application ISO Code
H, M, P, S
Measurement System
Metric
Extended Neck
Yes
Primary Material Application ISO Code
H, M, P3
Thread Standard
Metric Coarse
Shank Type - Machining
Straight
Thread Limit
D4
Primary Material Application
Hardened Steel, Stainless Steel, Steel
Coolant Fed
Non-Coolant Through
Helix Angle
15 Degrees
Secondary Material Application
Hardened Steel, Nickel, Stainless Steel, Steel, Titanium
Material Grade - Machining
VC-10
Features
Premium Powdered Metal VC-10 Substrate
Thread Pitch
0.70mm
Number of Pieces
1
List Number
345

Description

Spiral Flute Tap, Thread Size M4x0.7, Metric, Overall Length 54 mm, Powdered Metal, Black Oxide, Thread Length 5.6 mm, 75 Percent Thread Drill Size 3.30, Thread Limit D4, Class of Fit 4H-6H, Thread Direction Right Hand, Number of Flutes 3
