  11. Spiral Flute Tap, Modified Bottoming, 3

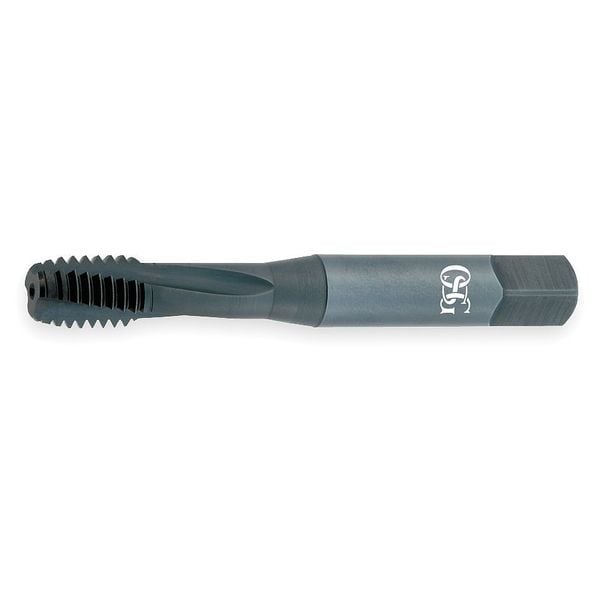

Osg Spiral Flute Tap, Modified Bottoming, 3 1709901 - main

Spiral Flute Tap, Modified Bottoming, 3

  • Mfr # 1709901

  • Zoro # G3461893

product price: $56.79
/ea

Key Features

Overall Length
2-23/32"
Tap Style
Spiral Flute
Shank Dia.
0.318"
Tap Chamfer
Modified Bottoming
Tap Dimension Type
Inch
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1709901
Zoro #
G3461893
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
2-23/32"
Shank Dia.
0.318"
Tap Dimension Type
Inch
Tap Size
5/16"
Thread Length
1-1/8"
Tap Thread Size
5/16"-24
Shank Length
1 19/32 in
55% Thread Drill Size
9/32 in
Thread Size
5/16"-18
75% Thread Drill Size
F
Drill Bit Size
0.2548 in, 0.2584 in, 0.2620 in, 0.2656 in, 0.2692 in
65% Thread Drill Size
J
Square Size
0.2380 in
Size
5/16
Pitch Diameter Limit
H3

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
Powdered Metal
Number of Flutes
3
Tap Grouping
Tap
Standards
ANSI
Tap Finish
Oxide
Tap Thread Type
UNF
Thread Direction
Right Hand
Series
313NI
Cutting Direction - Machining
Right Hand
Coolant Fed
Non-Coolant Through
Helix Angle
10 Degrees
Shank Type - Machining
Straight
Tap Shank Standard
ANSI
Measurement System
Fractional Inch
Secondary Material Application ISO Code
H, M, S3
Features
Inch and Metric, OSG V-Coating, Premium Powdered Metal VC-10 Substrate, Spiral Flute
Primary Material Application
Nickel, Titanium
Material Grade - Machining
313NI
Thread Limit
H7
Thread Standard
UNC
Secondary Material Application
Hardened Steel, Nickel, Stainless Steel, Titanium
Extended Neck
Yes
Threads per Inch
24
Primary Material Application ISO Code
S
Number of Pieces
1
List Number
313NI

Description

Spiral Flute Tap, Thread Size 5/16 In.-18, UNC, Overall Length 2 23/32 in, Powdered Metal, Black Oxide, Thread Length 7/16 in, 75 Percent Thread Drill Size F, Thread Limit H7, Thread Direction Right Hand, Number of Flutes 3
