Shop OSG

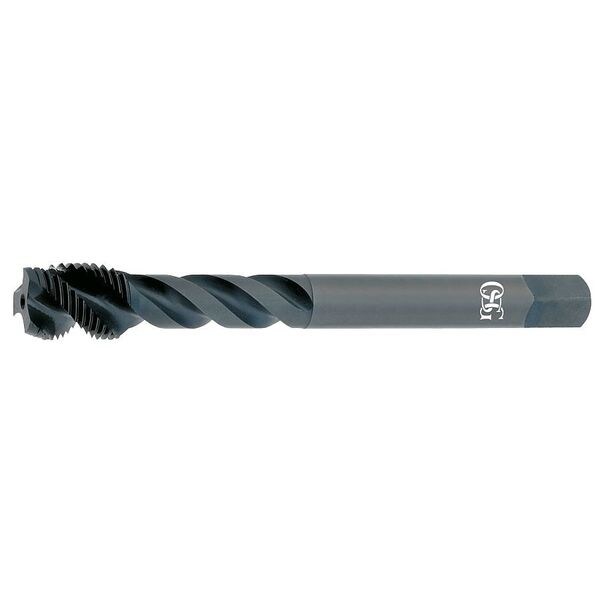

Spiral Flute Tap, Modified Bottoming 3 Flutes

  • Mfr # 2290801

  • Zoro # G3707864

product price:  $32.89
/ea

Key Features

Overall Length
70.00mm
Tap Style
Spiral Flute
Shank Dia.
4.93mm
Tap Chamfer
Modified Bottoming
Tap Dimension Type
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2290801
Zoro #
G3707864
UPC #
-
Country of Origin
Brazil

Dimensions

Overall Length
70.00mm
Shank Dia.
4.93mm
Tap Dimension Type
Metric
Tap Size
M5
Thread Length
22.22mm
Tap Thread Size
M5-0.80
Square Size
0.1520 in
75% Thread Drill Size
4.20
Thread Size
M5x0.8
Shank Length
1 3/4 in
Drill Bit Size
4.17mm, 4.22mm, 4.27mm, 4.32mm, 4.38mm
65% Thread Drill Size
4.30 mm
Tap Length Standard
DIN
55% Thread Drill Size
4.40 mm
Size
M5
Pitch Diameter Limit
D7
Square Length
0.152 in
Square Width
0.152 in
Shank Diameter
3/16 in

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Tap Thread Type
Metric Coarse
Thread Direction
Right Hand
Standards
ANSI, DIN
Tap Grouping
Tap
Tap Finish
Black Oxide
Cutting Direction - Machining
Right Hand
Series
229
Thread Pitch
0.80mm
Extended Neck
Yes
Helix Angle
45 Degrees
Primary Material Application ISO Code
P
Coolant Fed
Non-Coolant Through
Secondary Material Application
Cast Iron, Hardened Steel, Stainless Steel
Measurement System
Metric
Tap Shank Standard
ANSI
Thread Limit
Not Rated
Secondary Material Application ISO Code
H, K, M, P
Spiral Direction
Right Hand
Shank Type - Machining
Straight
Primary Material Application
Steel
Features
Complete Offering, DIN overall length, For blind hole applications, HSSE material, Inch and Metric, Increased wear resistance, Provides greater reach capability, S/O increases mechanical lubricity, Spiral Flute, Steam Oxide surface treatment
Thread Standard
Metric
List Number
229
Number of Pieces
1
Shank Type
Straight

Description

Spiral Flute Tap, Thread Size M5x0.8, Metric, Overall Length 2 3/4 in, High Speed Steel, Black Oxide, Thread Length 1/4 in, 75 Percent Thread Drill Size 4.20, Thread Limit Not Rated, Thread Direction Right Hand, Number of Flutes 3
