  11. Spiral Flute Tap Modified Bottoming, 4 Flutes

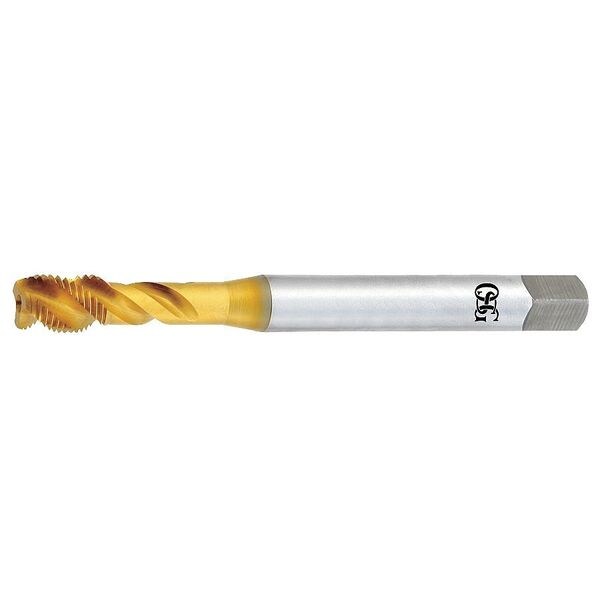

Osg Spiral Flute Tap Modified Bottoming, 4 Flutes 2333405 - main

Spiral Flute Tap Modified Bottoming, 4 Flutes

  • Mfr # 2333405

  • Zoro # G5622303

product price: $138.99
/ea
Free Shipping & Returns

Key Features

Overall Length
4"
Number of Flutes
4
Tap Material
High Speed Steel
Shank Dia.
0.480"
Tap Style
Spiral Flute
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2333405
Zoro #
G5622303
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
4"
Shank Dia.
0.480"
Tap Size
5/8"
Tap Dimension Type
Inch
Tap Thread Size
5/8"-18
Thread Length
1-13/16"
Drill Bit Size
0.5673 in, 0.5709 in, 0.5745 in, 0.5781 in, 0.5817 in
55% Thread Drill Size
14.80 mm
Tap Length Standard
DIN
65% Thread Drill Size
37/64 in
75% Thread Drill Size
13.60
Thread Size
5/8"-18
Shank Length
1 25/32 in
Square Size
0.3600 in
Size
5/8
Pitch Diameter Limit
Not Rated

Details

Item
Spiral Flute Tap
Number of Flutes
4
Tap Material
High Speed Steel
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Thread Type
UNF
Standards
ANSI, DIN
Tap Finish
TiN
Thread Direction
Right Hand
Tap Grouping
Tap
Cutting Direction - Machining
Right Hand
Series
230
Tap Shank Standard
DIN
Class of Fit
2B
Threads per Inch
18
Thread Limit
Not Rated
Primary Material Application
Steel
Secondary Material Application
All Materials
Coolant Fed
Coolant Through
Features
Coolant-Through, HSSE Material, Inch and Metric, Slow Spiral, Spiral Flute, TiCN Coating
Measurement System
Fractional Inch
Thread Standard
UNF
Primary Material Application ISO Code
P
Helix Angle
45 Degrees
Extended Neck
Yes
Shank Type - Machining
Straight
Secondary Material Application ISO Code
H, K, M, N, P1, P2
Material Grade - Machining
230
Number of Pieces
1
List Number
230

Description

Spiral Flute Tap, Thread Size 5/8 In.-18, UNF, Overall Length 3 15/16 in, High Speed Steel, TiN, Thread Length 47/64 in, 75 Percent Thread Drill Size 13.60, Thread Limit Not Rated, Class of Fit 2B, Thread Direction Right Hand, Number of Flutes 4
