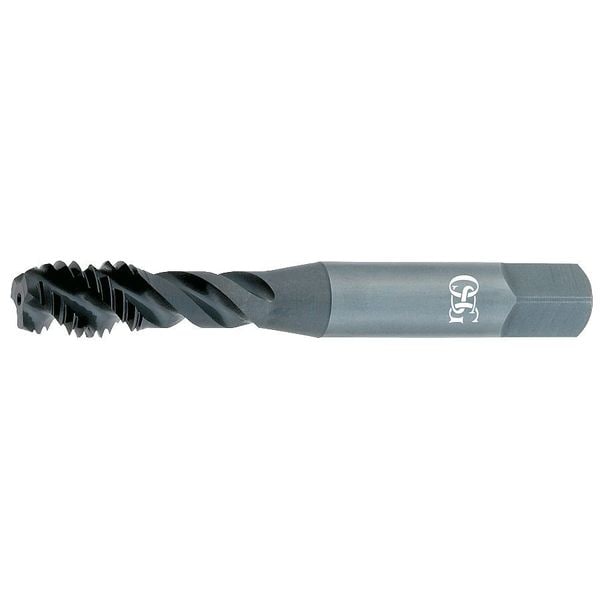

Spiral Flute Tap Modified Bottoming, 4 Flutes
Mfr # 34301201
Zoro # G9306315
product price:Â
$
198.99
/ea
Free Shipping & Returns
Key Features
Overall Length
108.00mm
Number of Flutes
4
Tap Material
High Speed Steel
Shank Dia.
15.00mm
Tap Style
Spiral Flute
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 34301201
- Zoro #
- G9306315
- UPC #
- -
- Country of Origin
- Brazil
Dimensions
- Overall Length
- 108.00mm
- Shank Dia.
- 15.00mm
- Tap Size
- M18
- Tap Dimension Type
- Metric
- Tap Thread Size
- M18-2.50
- Pitch Diameter Limit
- D5
- Thread Length
- 51.00mm
- Shank Length
- 52.00 mm
- 55% Thread Drill Size
- 16.20 mm
- Square Size
- 13.28 mm
- 75% Thread Drill Size
- 15.50 mm
- 65% Thread Drill Size
- 5/8 in
- Thread Size
- M18x2.5
- Square Width
- 13.28 mm
- Square Length
- 13.28 mm
- Shank Diameter
- 17.7 mm
- Wire Rope Length
- 119 mm
- Length
- 119 mm
Description
Screw Thread Insert STI Tap, Thread Size M18x2.5, Metric, Overall Length 119 mm, Vanadium High Speed Steel, Black Oxide, Right Hand, Thread Length 25 mm, Tap Chamfer Modified Bottoming, Thread Limit D5, Class of Fit 4H-6H, Number of Flutes 4
