Shop OSG

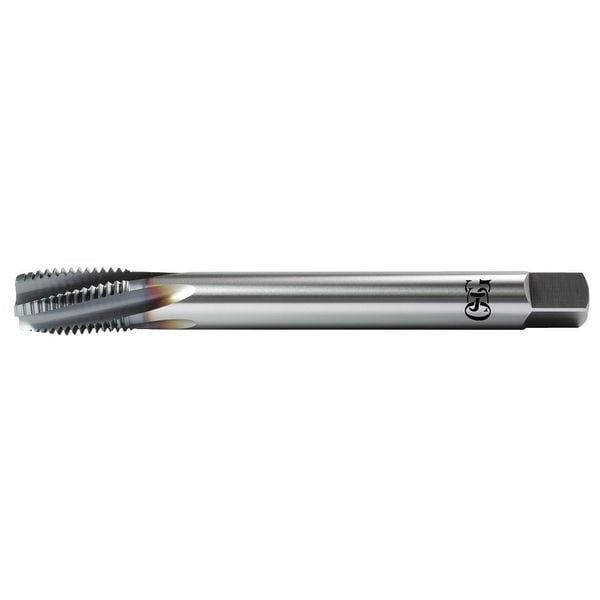

Spiral Flute Tap Plug, 4 Flutes

  • Mfr # 1311802408

  • Zoro # G9288955

product price:  $119.99
/ea
Free Shipping & Returns

Key Features

Overall Length
110.00mm
Number of Flutes
4
Tap Material
High Speed Steel
Shank Dia.
12.00mm
Tap Style
Spiral Flute
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1311802408
Zoro #
G9288955
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
110.00mm
Shank Dia.
12.00mm
Tap Size
M16
Tap Dimension Type
Metric
Thread Length
46.00mm
Tap Thread Size
M16-2.00
65% Thread Drill Size
9/16 in
Thread Size
M16x2
Shank Length
52.00 mm
55% Thread Drill Size
14.50 mm
Drill Bit Size
13.92mm, 14.05mm, 14.18mm, 14.31mm, 14.44mm
Square Size
9.14mm
Tap Length Standard
DIN
75% Thread Drill Size
14.00
Size
M16
Pitch Diameter Limit
D7
Square Width
9.14 mm
Square Length
9.14 mm
Shank Diameter
12.19 mm

Details

Item
Spiral Flute Tap
Number of Flutes
4
Tap Material
High Speed Steel
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Finish
TiCN
Thread Direction
Right Hand
Tap Grouping
Tap
Tap Thread Type
Metric Coarse
Standards
DIN
Cutting Direction - Machining
Right Hand
Series
13118
Thread Pitch
2.00mm
Primary Material Application
Cast Iron, Hardened Steel, Steel
Helix Angle
15 Degrees
Shank Type - Machining
Straight
Material Grade - Machining
13118
Thread Limit
D7
Tap Shank Standard
DIN
Secondary Material Application ISO Code
H, M, N
Extended Neck
Yes
Coolant Fed
Non-Coolant Through
Measurement System
Metric
Thread Standard
Metric
Primary Material Application ISO Code
H, K, P
Features
Increased Hardness, Increased Wear Resistance, Lubricity and Wear Resistance, Provides Greater Reach
Secondary Material Application
Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel
Number of Pieces
1
List Number
13118
Shank Type
Straight

Description

Spiral Flute Tap, Thread Size M16x2, Metric, Overall Length 110 mm, High Speed Steel, TiCN, Right Hand
