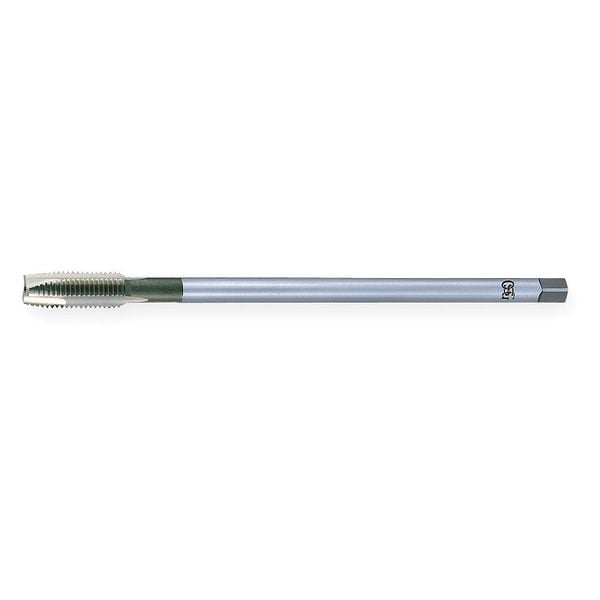

Spiral Point Tap, 3/8"-24, Plug, UNF, 3 Flutes

  • Mfr # 2104400

  • Zoro # G5747226

product price:  $50.19
/ea

Key Features

Shank Dia.
0.381"
Tap Style
Spiral Point
Tap Chamfer
Plug
Tap Dimension Type
Inch
Tap Material
High Speed Steel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2104400
Zoro #
G5747226
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
0.381"
Tap Dimension Type
Inch
Tap Size
3/8"
Overall Length
6 in
Thread Length
1-1/4"
Pitch Diameter Limit
H3
Tap Thread Size
3/8"-24
65% Thread Drill Size
R
55% Thread Drill Size
11/32 in
Thread Size
3/8"-24
Tap Length Standard
ANSI
75% Thread Drill Size
8.50 mm
Square Size
0.2850 in
Shank Length
4 37/64 in
Size
3/8"
Square Width
0.29 in
Shank Diameter
3/8 in
Square Length
0.29 in

Details

Item
Spiral Point Tap
Tap Style
Spiral Point
Tap Chamfer
Plug
Tap Material
High Speed Steel
Thread Direction
Right Hand
Number of Flutes
3
List Number
917
Number of Pieces
1
Tap Thread Type
UNF
Tap Grouping
Tap
Standards
ANSI
Tap Finish
Bright (Uncoated)
Cutting Direction - Machining
Right Hand
Series
917
Primary Material Application ISO Code
K, N, P
Threads per Inch
24
Extended Neck
No
Thread Limit
H3
Tap Type
Spiral Point
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Extended Shank
Yes
Thread Standard
UNF
Measurement System
Fractional Inch
Material Grade - Machining
917
Coolant Fed
Non-Coolant Through
Tap Shank Standard
ANSI
Spiral Direction
Neutral
Helix Angle
0 Degrees
Class of Fit
2B-3B
Tap Application
Blind Hole

Description

Extension Tap, Thread Size 3/8 In.-24, UNF, Overall Length 6 in, High Speed Steel, Bright (Uncoated), Right Hand, 24
