Osg

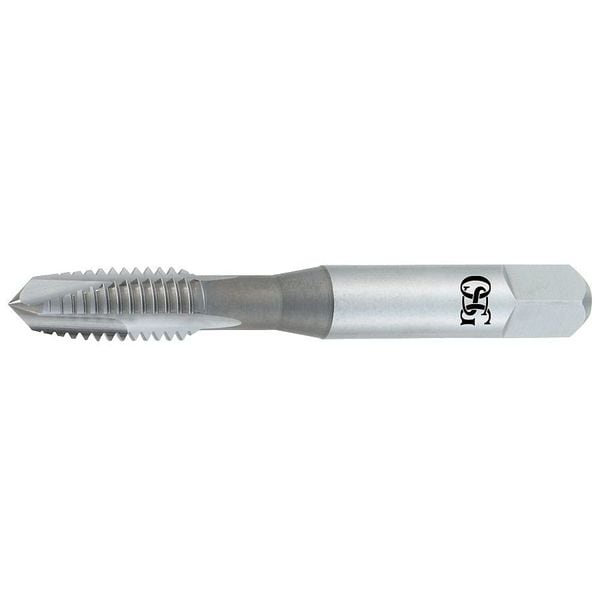

Spiral Point Tap, #8-32, Plug, UNC, 2 Flutes, TiN

product price: $7.29
/ea
Sold in multiples of 2 for $14.58
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tap Thread Size #8-32
  • Tap Chamfer Plug
  • Tap Thread Type UNC
  • Number of Flutes 2
  • Tap Style Spiral Point
See all product information

Product Information

Dimensions

Tap Thread Size #8-32
Shank Dia. 5/64 in
Pitch Diameter Limit Not Rated
Tap Size #8
Tap Dimension Type Inch
Thread Length 3/8 in
Overall Length 2 3/32 in
Shank Length 1 11/32 in
65% Thread Drill Size 3.50 mm
Square Size 0.1310 in
75% Thread Drill Size 3.40 mm
55% Thread Drill Size 3.60 mm
Thread Size #8-32
Drill Bit Size 0.1315 in, 0.1336 in, 0.1356 in, 0.1376 in, 0.1396 in
Size #8

Details

Item Spiral Point Tap
Tap Chamfer Plug
Tap Thread Type UNC
Number of Flutes 2
Tap Style Spiral Point
Tap Grouping Tap
Tap Material High Speed Steel
Tap Finish TiN
Number of Pieces 1
List Number 7670
Thread Direction Right Hand
Cutting Direction - Machining Right Hand
Series 287
Spiral Direction Neutral
Extended Neck Yes
Shank Type - Machining Straight
Coolant Fed Non-Coolant Through
Secondary Material Application Aluminum, Brass, Bronze, Copper
Thread Limit 3B
Thread Standard UNC
Measurement System Pipe
Secondary Material Application ISO Code N
Threads per Inch 32
Class of Fit JIS 2
Primary Material Application ISO Code P1, P2
Primary Material Application Steel
Helix Angle 0 Degrees

Description

Spiral Point Tap, Thread Size #8-32, UNC, Overall Length 2 3/32 in, High Speed Steel, TiN, Right Hand, Thread Length 3/8 in, 75 Percent Thread Drill Size 3.40 mm, Thread Limit 3B, Class of Fit JIS 2, Number of Flutes 2
