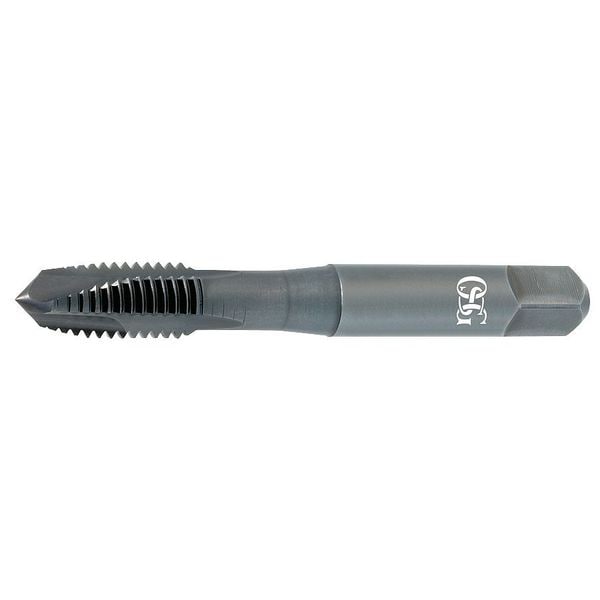

Spiral Point Tap Plug, 2 Flutes

  • Mfr # 34200201

  • Zoro # G9309517

product price:
$
38.39
/ea

Key Features

Shank Dia.
3.58mm
Tap Material
High Speed Steel
Tap Dimension Type
Metric
Tap Chamfer
Plug
Tap Size
M2.5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
34200201
Zoro #
G9309517
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
3.58mm
Tap Dimension Type
Metric
Tap Size
M2.5
Overall Length
49.00mm
Pitch Diameter Limit
D2
Thread Length
16.00mm
Tap Thread Size
M2.5-0.45
55% Thread Drill Size
2.10 mm
Square Size
2.79 mm
75% Thread Drill Size
#46
Thread Size
M2.5x0.45
65% Thread Drill Size
#44
Shank Length
33.00 mm
Shank Diameter
3.58 mm
Square Width
2.79 mm
Square Length
2.79 mm
Wire Rope Length
49 mm
Length
49 mm

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Style
Spiral Point
Number of Flutes
2
Thread Direction
Right Hand
Tap Thread Type
Metric Coarse
List Number
342STI
Tap Finish
Black Oxide
Tap Grouping
STI Tap
Number of Pieces
1
Cutting Direction - Machining
Right Hand
Series
342STI
Shank Type - Machining
Straight
Thread Limit
D2
Primary Material Application
Stainless Steel, Steel
Interrupted Thread
Yes
Spiral Direction
Neutral
Thread Standard
Metric
Primary Material Application ISO Code
M, P
Material Grade - Machining
342STI
Thread Pitch
0.45mm
Extended Neck
Yes
Features
STI Thread
Measurement System
Metric
Coolant Fed
Non-Coolant Through
Helix Angle
0 Degrees
Tap Application
Through Hole
Shank Type
Straight
Secondary Material Application ISO Code
M, P
Class of Fit
4H-6H
Secondary Material Application
Stainless Steel, Steel

Description

Screw Thread Insert STI Tap, Thread Size M2.5x0.45, Metric, Overall Length 49 mm, Vanadium High Speed Steel, Black Oxide, Right Hand, Thread Length 7 mm, Tap Chamfer Plug, Thread Limit D2, Class of Fit 4H-6H, Number of Flutes 2
