  11. Spiral Point Tap, Plug, 3

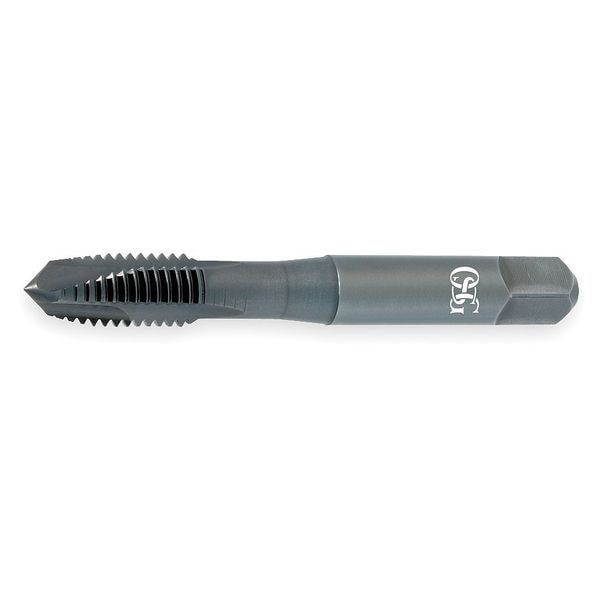

Osg Spiral Point Tap, Plug, 3 1702501 - main

Spiral Point Tap, Plug, 3

  • Mfr # 1702501

  • Zoro # G2499612

product price: $42.19
/ea

Key Features

Shank Dia.
6.50mm
Tap Material
Powdered Metal
Tap Style
Spiral Point
Tap Size
M6
Tap Chamfer
Plug
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1702501
Zoro #
G2499612
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
6.50mm
Tap Size
M6
Tap Dimension Type
Metric
Overall Length
64.00mm
Tap Thread Size
M6-1
Thread Length
25.00mm
Shank Length
38.00 mm
Thread Size
M6x1
Square Size
4.85 mm
75% Thread Drill Size
5.00 mm
Drill Bit Size
4.96 mm, 5.03 mm, 5.09 mm, 5.16 mm, 5.22 mm
55% Thread Drill Size
5.25 mm
65% Thread Drill Size
13/64 in
Size
M6
Pitch Diameter Limit
D5

Details

Item
Spiral Point Tap
Tap Material
Powdered Metal
Tap Style
Spiral Point
Tap Chamfer
Plug
Number of Flutes
3
Tap Finish
Oxide
Thread Direction
Right Hand
Tap Grouping
Tap
Standards
ANSI
Tap Thread Type
Metric Coarse
Series
344
Cutting Direction - Machining
Right Hand
Secondary Material Application
Hardened Steel, Nickel, Steel, Titanium
Secondary Material Application ISO Code
H, M, P, S
Primary Material Application
Hardened Steel, Stainless Steel, Steel
Thread Standard
Metric Coarse
Thread Limit
D5
Spiral Direction
Neutral
Primary Material Application ISO Code
H, M, P3
Shank Type - Machining
Straight
Thread Pitch
1.00 mm
Extended Neck
Yes
Measurement System
Metric
Coolant Fed
Non-Coolant Through
Helix Angle
0 Degrees
Number of Pieces
1
List Number
344

Description

Spiral Point Tap, Thread Size M6x1, Metric, Overall Length 63 mm, Powdered Metal, Black Oxide, Right Hand, Thread Length 12 mm, 75 Percent Thread Drill Size 5.00 mm, Thread Limit D5, Class of Fit 4H-6H, Number of Flutes 3
