  11. Spiral Point Tap, Plug, 3

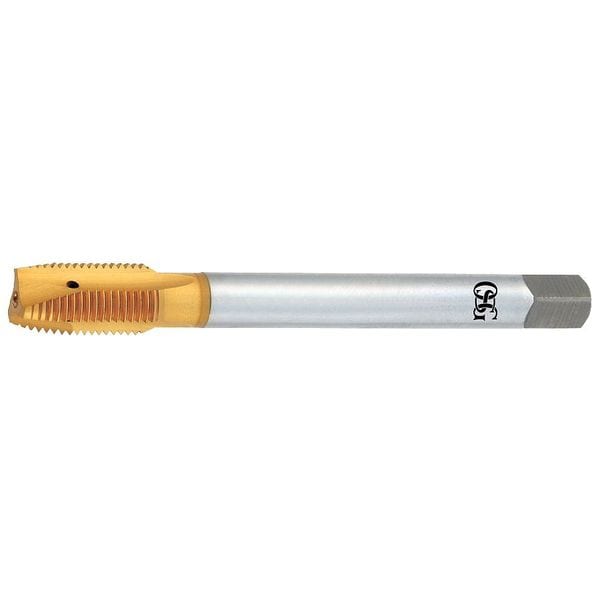

Osg Spiral Point Tap, Plug, 3 2634405 - main

Spiral Point Tap, Plug, 3

  • Mfr # 2634405

  • Zoro # G3679891

product price: $273.99
/ea
Free Shipping & Returns

Key Features

Tap Style
Spiral Point
Tap Size
1"
Tap Dimension Type
Inch
Tap Material
High Speed Steel
Tap Chamfer
Plug
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2634405
Zoro #
G3679891
UPC #
-
Country of Origin
Japan

Dimensions

Tap Size
1"
Tap Dimension Type
Inch
Overall Length
6-19/64"
Shank Dia.
0.800"
Tap Thread Size
1"-8
Thread Length
2-1/2"
Thread Size
1"-8
Drill Bit Size
0.8701 in, 0.8782 in, 0.8863 in, 0.8945 in, 0.9026 in
Tap Length Standard
DIN
Shank Length
4 3/16 in
75% Thread Drill Size
22.25 mm
65% Thread Drill Size
57/64 in
55% Thread Drill Size
29/32 in
Square Size
0.6000 in
Size
1
Pitch Diameter Limit
Not Rated

Details

Item
Spiral Point Tap
Tap Style
Spiral Point
Tap Material
High Speed Steel
Tap Chamfer
Plug
Number of Flutes
3
Tap Thread Type
UNC
Standards
ANSI, DIN
Tap Grouping
Tap
Thread Direction
Right Hand
Tap Finish
TiN
Cutting Direction - Machining
Right Hand
Series
260
Class of Fit
2B
Secondary Material Application ISO Code
H, K, M, P
Secondary Material Application
Cast Iron, Hardened Steel, Stainless Steel, Steel
Coolant Fed
Coolant Through
Primary Material Application
Steel
Shank Type - Machining
Straight
Thread Standard
UNC
Primary Material Application ISO Code
P
Measurement System
Fractional Inch
Extended Neck
Yes
Threads per Inch
8
Tap Shank Standard
ANSI
Spiral Direction
Neutral
Helix Angle
0 Degrees
Number of Pieces
1
List Number
260

Description

Spiral Point Tap, Thread Size 1 In.-8, UNC, Overall Length 6 19/64 in, Vanadium High Speed Steel, TiN, Right Hand, Thread Length 1 1/2 in, 75 Percent Thread Drill Size 22.25 mm, Thread Limit Not Applicable, Class of Fit 2B, Number of Flutes 4
