Shop OSG

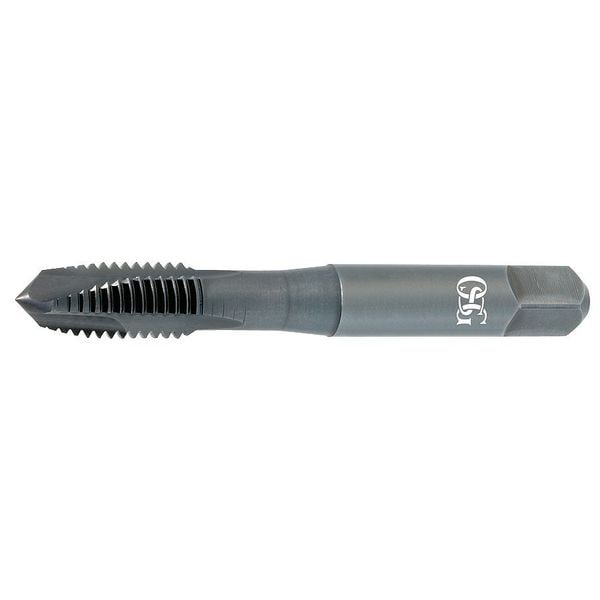

Spiral Point Tap, Plug, 3

  • Mfr # 2842608

  • Zoro # G9290793

product price:  $36.29
/ea

Key Features

Shank Dia.
0.367"
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Size
1/2"
Tap Chamfer
Plug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2842608
Zoro #
G9290793
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
0.367"
Tap Size
1/2"
Tap Dimension Type
Inch
Overall Length
3-3/8"
Tap Thread Size
1/2"-20
Thread Length
1-21/32"
Shank Length
2 in
Drill Bit Size
0.4480 in, 0.4513 in, 0.4545 in, 0.4578 in, 0.4610 in
Thread Size
1/2"-20
75% Thread Drill Size
11.40 mm
Square Size
0.2740 in
65% Thread Drill Size
11.60 mm
55% Thread Drill Size
11.80 mm
Size
1/2
Pitch Diameter Limit
H5
Shank Diameter
23/64 in
Square Length
0.274 in
Square Width
0.274 in

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Chamfer
Plug
Number of Flutes
3
Tap Grouping
Tap
Thread Direction
Right Hand
Standards
ANSI
Tap Finish
TiCN
Tap Thread Type
UNF
Series
280
Cutting Direction - Machining
Right Hand
Extended Neck
Yes
Thread Limit
H5
Secondary Material Application ISO Code
H, K, M, P
Spiral Direction
Neutral
Primary Material Application ISO Code
P
Coolant Fed
Non-Coolant Through
Secondary Material Application
Cast Iron, Hardened Steel, Stainless Steel, Tool and Die Steel
Thread Standard
UNF
Threads per Inch
20
Measurement System
Fractional Inch
Primary Material Application
Steel
Shank Type - Machining
Straight
Class of Fit
2B-3B
Helix Angle
0 Degrees
Number of Pieces
1
List Number
280
Tap Application
Through Hole
Shank Type
Square

Description

Spiral Point Tap, Thread Size 1/2 In.-20, UNF, Overall Length 3 3/8 in, Vanadium High Speed Steel, TiCN, Right Hand, Thread Length 59/64 in, 75 Percent Thread Drill Size 11.40 mm, Thread Limit H5, Class of Fit 2B-3B, Number of Flutes 3
