Osg

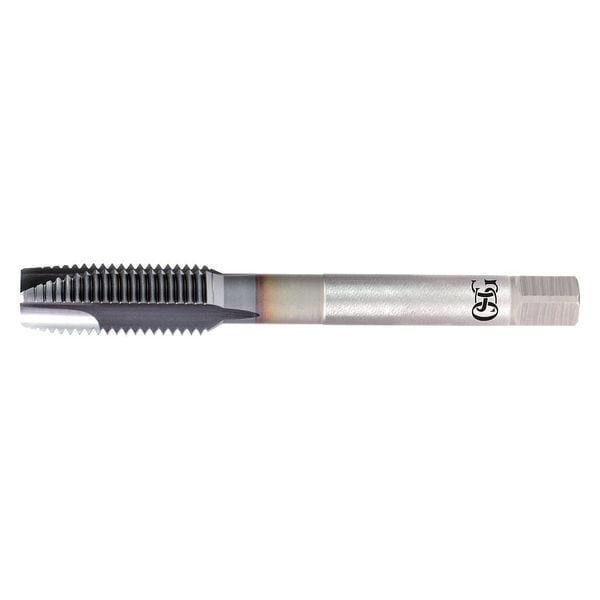

Spiral Point Tap Plug, 3 Flutes

product price: $28.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tap Thread Size 1/4"-20
  • Tap Chamfer Plug
  • Number of Flutes 3
  • Thread Length 9/16 in
  • Tap Finish TiCN
See all product information

Product Information

Dimensions

Tap Thread Size 1/4"-20
Thread Length 9/16 in
Tap Size 1/4"
Overall Length 3 1/8 in
Shank Dia. 1/8 in
75% Thread Drill Size #7
Tap Length Standard DIN
Shank Length 1 15/16 in
Square Size 0.1900 in
Drill Bit Size 0.1980 in, 0.2013 in, 0.2045 in, 0.2078 in, 0.2110 in
55% Thread Drill Size #3
65% Thread Drill Size #5
Thread Size 1/4"-20
Size 1/4

Details

Item Spiral Point Tap
Tap Chamfer Plug
Number of Flutes 3
Tap Finish TiCN
Thread Direction Right Hand
Tap Style Spiral Point
Tap Material VC-10
Standards ANSI, DIN
Cutting Direction - Machining Right Hand
Series 16515
Coolant Fed Non-Coolant Through
Primary Material Application Hardened Steel, Stainless Steel, Steel
Extended Neck Yes
Threads per Inch 20
Thread Standard UNC
Secondary Material Application ISO Code K, N, P
Measurement System Fractional Inch
Shank Type - Machining Straight
Tap Shank Standard ANSI
Secondary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Primary Material Application ISO Code H, M, P
Thread Limit H3
Spiral Direction Neutral
Class of Fit H3
Helix Angle 0 Degrees

Description

Spiral Point Tap, Thread Size 1/4 In.-20, UNC, Overall Length 3 1/8 in, VC-10, TiCN, Right Hand, Thread Length 9/16 in, 75 Percent Thread Drill Size #7, Thread Limit H3, Class of Fit H3, Number of Flutes 3
