Shop OSG

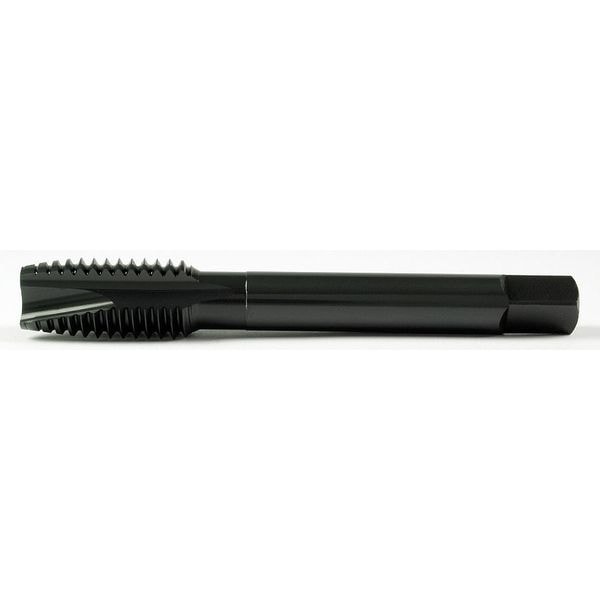

Spiral Point Tap Plug, 3 Flutes

  • Mfr # 2893201

  • Zoro # G5669352

product price:  $107.99
/ea
Free Shipping & Returns

Key Features

Shank Dia.
13.70mm
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Size
M18
Tap Chamfer
Plug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2893201
Zoro #
G5669352
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
13.70mm
Tap Size
M18
Tap Dimension Type
Metric
Overall Length
102.00mm
Thread Length
46.00mm
Tap Thread Size
M18-2.5
Drill Bit Size
15.40 mm, 15.56 mm, 15.73 mm, 15.89 mm, 16.05 mm
75% Thread Drill Size
15.50 mm
55% Thread Drill Size
16.20 mm
Thread Size
M18x2.5
Shank Length
59.00 mm
Square Size
10.31 mm
65% Thread Drill Size
5/8 in
Size
M18
Pitch Diameter Limit
D7
Square Width
10.31 mm
Shank Diameter
13.76 mm
Square Length
10.31 mm
Wire Rope Length
102 mm

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Chamfer
Plug
Number of Flutes
3
Standards
ANSI
Thread Direction
Right Hand
Tap Grouping
Tap
Tap Thread Type
Metric Coarse
Tap Finish
Oxide
Cutting Direction - Machining
Right Hand
Series
289
Primary Material Application ISO Code
P
Thread Limit
D7
Secondary Material Application
Cast Iron, Hardened Steel, Stainless Steel, Tool and Die Steel
Primary Material Application
Steel
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Thread Standard
Metric
Secondary Material Application ISO Code
H, K, M, P
Extended Neck
Yes
Spiral Direction
Neutral
Thread Pitch
2.50 mm
Measurement System
Metric
Helix Angle
0 Degrees
List Number
289
Number of Pieces
1
Shank Type
Square
Tap Application
Through Hole
Class of Fit
4H-6H

Description

Spiral Point Tap, Thread Size M18x2.5, Metric, Overall Length 102 mm, Vanadium High Speed Steel, Black Oxide, Right Hand, Thread Length 30 mm, 75 Percent Thread Drill Size 15.50 mm, Thread Limit D7, Class of Fit 4H-6H, Number of Flutes 3
