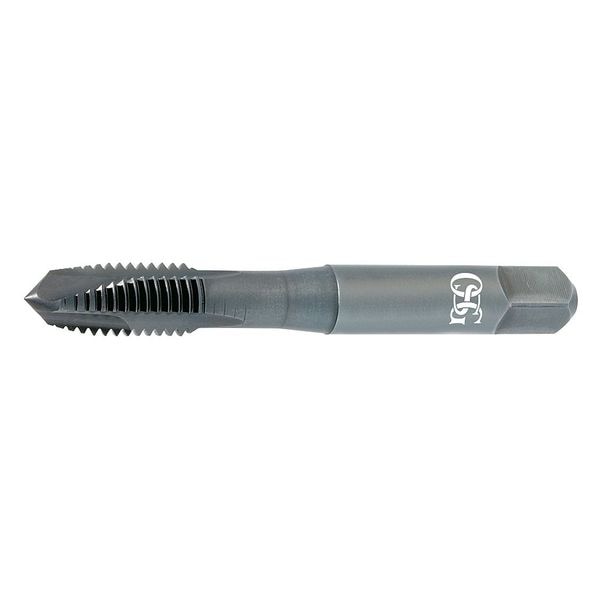

Spiral Point Tap Plug, 4 Flutes

  • Mfr # 2895001

  • Zoro # G9291396

product price:  $378.99
/ea
Free Shipping & Returns

Key Features

Tap Style
Spiral Point
Tap Size
M30
Tap Dimension Type
Metric
Tap Material
High Speed Steel
Tap Chamfer
Plug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2895001
Zoro #
G9291396
UPC #
-
Country of Origin
Mexico

Dimensions

Tap Size
M30
Tap Dimension Type
Metric
Overall Length
138.00mm
Shank Dia.
25.45mm
Thread Length
65.00mm
Tap Thread Size
M30-1.5
Shank Length
84.00 mm
65% Thread Drill Size
28.73 mm
75% Thread Drill Size
28.54 mm
Square Size
19.46 mm
Drill Bit Size
28.44 mm, 28.54 mm, 28.64 mm, 28.73 mm, 28.83 mm
Thread Size
M30x1.5
Size
M30
Pitch Diameter Limit
D6
Shank Diameter
25.93 mm
Square Width
19.46 mm
Square Length
19.46 mm
Wire Rope Length
138 mm

Details

Item
Spiral Point Tap
Tap Style
Spiral Point
Tap Material
High Speed Steel
Tap Chamfer
Plug
Number of Flutes
4
Tap Grouping
Tap
Tap Thread Type
Metric Fine
Standards
ANSI
Thread Direction
Right Hand
Tap Finish
Black Oxide
Series
289
Cutting Direction - Machining
Right Hand
Secondary Material Application ISO Code
H, K, M, P
Shank Type - Machining
Straight
Spiral Direction
Neutral
Primary Material Application
Steel
Thread Standard
Metric
Secondary Material Application
Cast Iron, Hardened Steel, Stainless Steel, Tool and Die Steel
Primary Material Application ISO Code
P
Thread Limit
D6
Thread Pitch
1.50 mm
Extended Neck
Yes
Measurement System
Metric
Coolant Fed
Non-Coolant Through
Helix Angle
0 Degrees
List Number
289
Number of Pieces
1
Tap Application
Through Hole
Shank Type
Square
Class of Fit
4H-6H

Description

Spiral Point Tap, Thread Size M30x1.5, Metric, Overall Length 138 mm, Vanadium High Speed Steel, Black Oxide, Right Hand, Thread Length 38 mm, 75 Percent Thread Drill Size 28.54 mm, Thread Limit D6, Class of Fit 4H-6H, Number of Flutes 4
