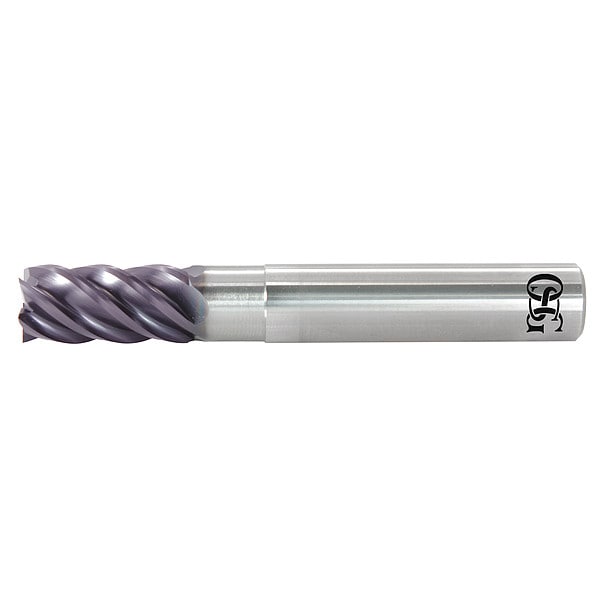

Sq. End Mill, Single End, Carb, 1

Mfr # 21020311
Zoro # G2210346

576.17

/ea

Free Shipping & Returns

Key Features

Dimension Type

Fractional Inch

Milling Diameter

End Mill Material

Carbide

Number of Flutes

Length of Cut

2 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 21020311
Zoro #: G2210346
UPC #: -
Country of Origin: United States

Dimensions

Dimension Type: Fractional Inch
Milling Diameter: 2"
Length of Cut: 2 in
Shank Dia.: 1 in
Overall Length: 5 1/2 in
Neck Dia.: 0.9843 in
Milling Dia.: 2 in
Neck Length: 3 in
Wire Rope Length: 5 1/2 in
Length: 5 1/2 in

Details

End Mill Material: Carbide
Number of Flutes: 5
Single End/Double End: Single
End Mill Cutting Type: Center Cutting
Grade: Carbide
Measurement System: Inch
Min. Helix Angle: 41 Degrees
Spiral Direction: Right Hand
Finish - Machining: EXO
List Number: 2102
Shank Type: Straight
End Mill Style: Square
Cutting Direction: Right Hand
Helix Angle: Variable
Number of Coolant Holes: 0
End Mill Application: Finishing
Series: EXOCARB AERO UVX-Ti
Material - Machining: Carbide
Finish: Plain
Max. Helix Angle: 43 Degrees
Cutting Direction - Machining: Right Hand
For Material Hardness: 35 HRC
Material Grade - Machining: C2 Micrograin
Drilling Tool Configuration: Individual
Flute Type: Spiral
Shank Type - Machining: Straight
Item: Square End Mill
Workpiece Compatibility: Stainless (M), Super Alloy (S)
Coolant Fed: Non-Coolant Through
Primary Material Application: Titanium
Primary Material Application ISO Code: S

Description

Square End Mill, 2 in Milling Dia., Carbide, EXO, Non-Coolant Through, Straight, Length of Cut 2 in, Overall Length 5 1/2 in, Shank Dia. 1 in, Neck Dia. 0.9843 in
