Shop OSG

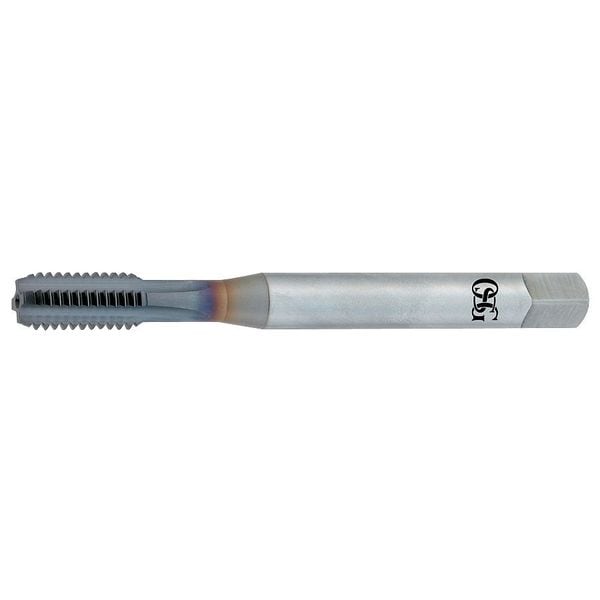

Straight Flute Hand Tap, #10-24, Modified Bottoming, 4 Flutes, UNC

  • Mfr # 1005111008

  • Zoro # G9293383

product price:  $37.79
/ea

Key Features

Shank Dia.
0.194"
Tap Material
Powdered Metal
Tap Chamfer
Modified Bottoming
Tap Size
#10
Tap Style
Straight Flute (Hand)
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1005111008
Zoro #
G9293383
UPC #
-
Country of Origin
Japan

Dimensions

Shank Dia.
0.194"
Tap Size
#10
Tap Dimension Type
Inch
Overall Length
2-3/8"
Thread Length
7/8"
Pitch Diameter Limit
H3
Tap Thread Size
#10-24
75% Thread Drill Size
#23
Thread Size
#10-24
55% Thread Drill Size
#21
65% Thread Drill Size
#23
Square Size
0.1510 in
Shank Length
1 15/32 in
Size
#10
Neck Length
0.87 in
Square Length
0.25 in
Shank Diameter
0.194 in
Square Width
0.15 in

Details

Item
Straight Flute Hand Tap
Tap Material
Powdered Metal
Tap Chamfer
Modified Bottoming
Tap Style
Straight Flute (Hand)
Number of Flutes
4
Thread Direction
Right Hand
List Number
10051
Tap Thread Type
UNC
Number of Pieces
1
Tap Grouping
Tap
Tap Finish
TiCN
Series
10051
Cutting Direction - Machining
Right Hand
Thread Standard
UNC
Secondary Material Application
Steel
Primary Material Application ISO Code
H
Measurement System
Pipe
Primary Material Application
Hardened Steel
Threads per Inch
24
Thread Limit
H3
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Extended Neck
Yes
Spiral Direction
Neutral
Secondary Material Application ISO Code
P
Helix Angle
0 Degrees
Shank Type
Square
Class of Fit
2B-3B
Tap Application
Blind Hole, Through Hole

Description

Straight Flute Tap, Thread Size #10-24, UNC, Modified Bottoming, Overall Length 2.37 in, Powdered Metal, V, Right Hand, Thread Length 0.5 in, 75 Percent Thread Drill Size #23, Thread Limit H3, Class of Fit 2B-3B
