  11. Straight Flute Hand Tap, 2"-8, Plug, 6 Flutes, UNF

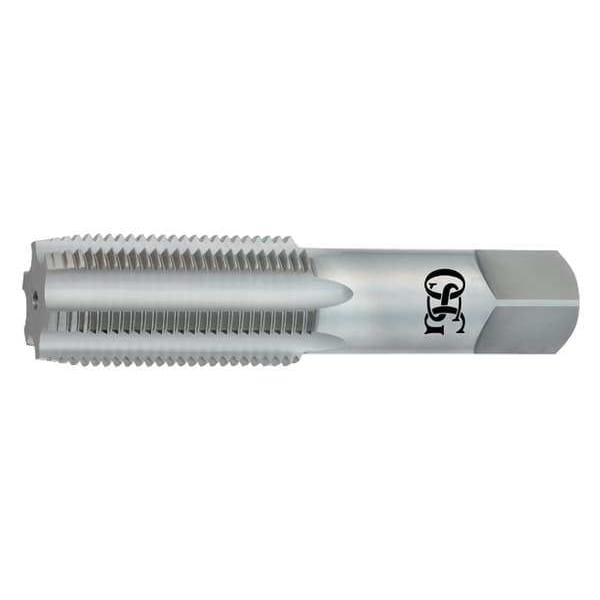

Osg Straight Flute Hand Tap, 2"-8, Plug, 6 Flutes, UNF 1692200 - main

Straight Flute Hand Tap, 2"-8, Plug, 6 Flutes, UNF

  • Mfr # 1692200

  • Zoro # G9300033

product price: $508.99
/ea
Free Shipping & Returns

Key Features

Tap Thread Size
2"-8
Tap Chamfer
Plug
Number of Flutes
6
Tap Thread Type
UNF
Shank Dia.
1.644"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1692200
Zoro #
G9300033
UPC #
-
Country of Origin
Mexico

Dimensions

Tap Thread Size
2"-8
Shank Dia.
1.644"
Pitch Diameter Limit
H6
Tap Size
2"
Overall Length
7-5/8"
Thread Length
3-9/16"
Tap Dimension Type
Inch
75% Thread Drill Size
1.8782 in
Shank Length
3 25/32 in
65% Thread Drill Size
1.8945 in
Square Size
1.2330 in
Thread Size
2"-8
Size
2"

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Plug
Number of Flutes
6
Tap Thread Type
UNF
Tap Finish
Bright
Tap Style
Straight Flute (Hand)
List Number
180
Tap Grouping
Tap
Tap Material
High Speed Steel
Number of Pieces
1
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
180
Thread Limit
H6
Spiral Direction
Neutral
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Primary Material Application ISO Code
H, K, M, N, O, P, S
Measurement System
Fractional Inch
Extended Neck
Yes
Threads per Inch
8
Shank Type - Machining
Straight
Secondary Material Application ISO Code
K, N, P
Coolant Fed
Non-Coolant Through
Primary Material Application
All Materials
Thread Standard
UNS
Helix Angle
0 Degrees

Description

Straight Flute Tap, Thread Size 2 In.-8, 8UN, Plug, Overall Length 7.62 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1.87 in, 75 Percent Thread Drill Size 1.8782 in, Thread Limit H6, Class of Fit 2B-3B
