Shop OSG

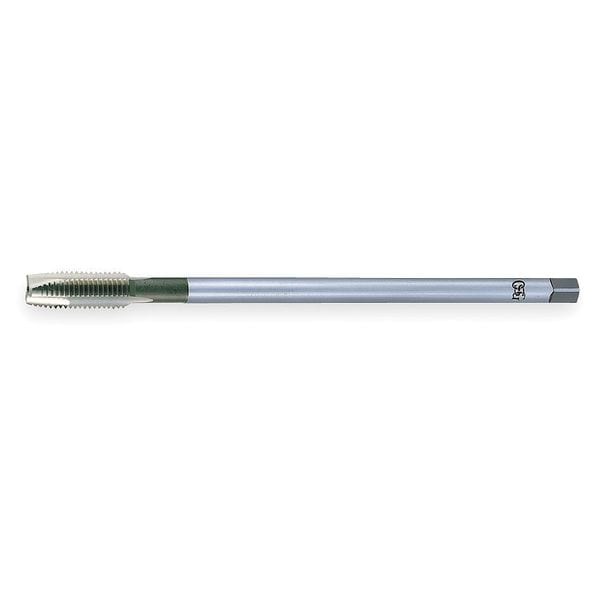

Straight Flute Hand Tap, 3/8"-16, Bottoming, 4 Flutes, UNC

  • Mfr # 1601607

  • Zoro # G1253533

product price:  $14.49
/ea

Key Features

Shank Dia.
0.381"
Tap Material
High Speed Steel
Tap Chamfer
Bottoming
Tap Size
3/8"
Tap Style
Straight Flute (Hand)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1601607
Zoro #
G1253533
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
0.381"
Tap Size
3/8"
Tap Dimension Type
Inch
Overall Length
2-15/16"
Pitch Diameter Limit
H5
Thread Length
1-1/4"
Tap Thread Size
3/8"-16
Shank Length
1 1/2 in
Thread Size
3/8"-16
55% Thread Drill Size
8.40 mm
Square Size
0.2860 in
75% Thread Drill Size
5/16 in
65% Thread Drill Size
P
Tap Length Standard
ANSI
Size
3/8"
Shank Diameter
0.381 in
Square Length
0.44 in
Neck Length
1.41 in
Square Width
0.29 in

Details

Item
Straight Flute Hand Tap
Tap Material
High Speed Steel
Tap Chamfer
Bottoming
Tap Style
Straight Flute (Hand)
Number of Flutes
4
Thread Direction
Right Hand
List Number
101C
Tap Grouping
Tap
Number of Pieces
1
Tap Thread Type
UNC
Standards
ANSI
Tap Finish
Black Oxide
Cutting Direction - Machining
Right Hand
Series
101C
Tap Shank Standard
ANSI
Thread Standard
UNC
Primary Material Application
Aluminum, Cast Iron
Shank Type - Machining
Straight
Extended Neck
Yes
Primary Material Application ISO Code
K, N
Thread Limit
H5
Threads per Inch
16
Measurement System
Fractional Inch
Spiral Direction
Neutral
Coolant Fed
Non-Coolant Through
Helix Angle
0 Degrees
Tap Application
Through Hole
Class of Fit
2B-3B
Shank Type
Square

Description

Straight Flute Tap, Thread Size 3/8 In.-16, UNC, Bottoming, Overall Length 2.93 in, High Speed Steel, Black Oxide, Right Hand, Thread Length 0.94 in, 75 Percent Thread Drill Size 5/16 in, Thread Limit H5, Class of Fit 2B-3B
