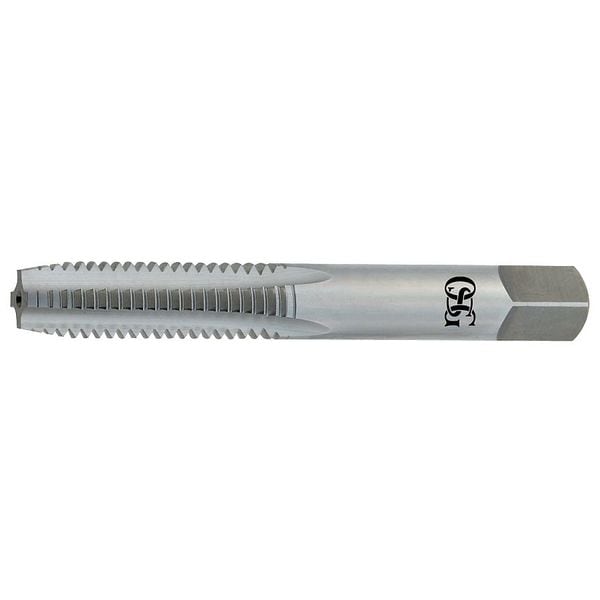

Straight Flute Hand Tap, 3/8"-16, Plug, 4 Flutes, UNC

  • Mfr # 1734200
  • Zoro # G3689384
product price:
$
28.35
/ea

Key Features

Shank Dia.
0.381"
Tap Material
Cobalt
Tap Chamfer
Plug
Tap Size
3/8"
Tap Style
Straight Flute (Hand)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1734200
Zoro #
G3689384
UPC #
-
Country of Origin
Mexico
Item
Straight Flute Hand Tap
Tap Material
Cobalt
Tap Chamfer
Plug
Tap Style
Straight Flute (Hand)
Number of Flutes
4
Thread Direction
Right Hand
Standards
ANSI
Tap Grouping
Tap
Tap Finish
Bright (Uncoated)
Tap Thread Type
UNC
Number of Pieces
1
List Number
305
Series
305
Cutting Direction - Machining
Right Hand
Thread Limit
H3
Spiral Direction
Neutral
Tap Shank Standard
ANSI
Primary Material Application ISO Code
H, P
Thread Standard
UNC
Shank Type - Machining
Straight
Extended Neck
Yes
Coolant Fed
Non-Coolant Through
Measurement System
Fractional Inch
Primary Material Application
Hardened Steel, Tool and Die Steel
Threads per Inch
16
Helix Angle
0 Degrees
Secondary Material Application
Steel
Secondary Material Application ISO Code
H, P
Class of Fit
2B-3B
Tap Application
Blind Hole, Through Hole
Shank Type
Square

Dimensions

Shank Dia.
0.381"
Tap Size
3/8"
Tap Dimension Type
Inch
Overall Length
2-15/16"
Thread Length
1-1/4"
Tap Thread Size
3/8"-16
Pitch Diameter Limit
H3
75% Thread Drill Size
5/16 in
Thread Size
3/8"-16
Shank Length
1 21/32 in
Tap Length Standard
ANSI
65% Thread Drill Size
P
55% Thread Drill Size
8.40 mm
Square Size
0.2850 in
Size
3/8"
Square Width
0.29 in
Square Length
0.44 in
Shank Diameter
0.38 in
Wire Rope Length
2.93 in
Length
2.93 in

Description

Straight Flute Tap, Thread Size 3/8 In.-16, UNC, Plug, Overall Length 2.93 in, Cobalt, Bright (Uncoated), Right Hand, Thread Length 1.25 in, 75 Percent Thread Drill Size 5/16 in, Thread Limit H3, Class of Fit 2B-3B
