Shop OSG

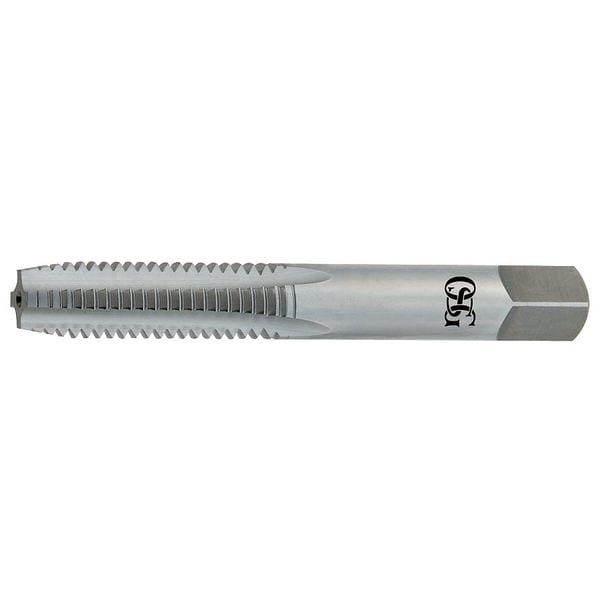

Straight Flute Hand Tap, 9/16"-18, Bottoming, 4 Flutes, UNF

  • Mfr # 1662400

  • Zoro # G3707767

product price:  $38.79
/ea

Key Features

Shank Dia.
0.429"
Tap Material
High Speed Steel
Tap Chamfer
Bottoming
Tap Size
9/16"
Tap Style
Straight Flute (Hand)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1662400
Zoro #
G3707767
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
0.429"
Tap Size
9/16"
Tap Dimension Type
Inch
Overall Length
3-19/32"
Thread Length
1-21/32"
Pitch Diameter Limit
H3
Tap Thread Size
9/16"-18
75% Thread Drill Size
12.90 mm
Thread Size
9/16"-18
55% Thread Drill Size
13.25 mm
Tap Length Standard
ANSI
65% Thread Drill Size
33/64 in
Square Size
0.3220 in
Shank Length
1 5/8 in
Size
9/16"
Square Width
0.32 in
Square Length
0.5 in
Neck Length
1.94 in
Shank Diameter
0.429 in

Details

Item
Straight Flute Hand Tap
Tap Material
High Speed Steel
Tap Chamfer
Bottoming
Tap Style
Straight Flute (Hand)
Number of Flutes
4
Thread Direction
Left Hand
Standards
ANSI
List Number
101L
Number of Pieces
1
Tap Grouping
Tap
Tap Thread Type
UNF
Tap Finish
Bright (Uncoated)
Cutting Direction - Machining
Left Hand
Series
101L
Thread Standard
UNF
Primary Material Application ISO Code
K, N, P
Spiral Direction
Neutral
Primary Material Application
Aluminum, Cast Iron, Steel
Coolant Fed
Non-Coolant Through
Threads per Inch
18
Shank Type - Machining
Straight
Extended Neck
Yes
Thread Limit
H3
Measurement System
Fractional Inch
Tap Shank Standard
ANSI
Helix Angle
0 Degrees
Shank Type
Square
Tap Application
Blind Hole, Through Hole
Class of Fit
2B-3B

Description

Straight Flute Tap, Thread Size 9/16 In.-18, UNF, Bottoming, Overall Length 3.59 in, High Speed Steel, Bright (Uncoated), Left Hand, Thread Length 1.25 in, 75 Percent Thread Drill Size 12.90 mm, Thread Limit H3, Class of Fit 2B-3B
