Shop OSG

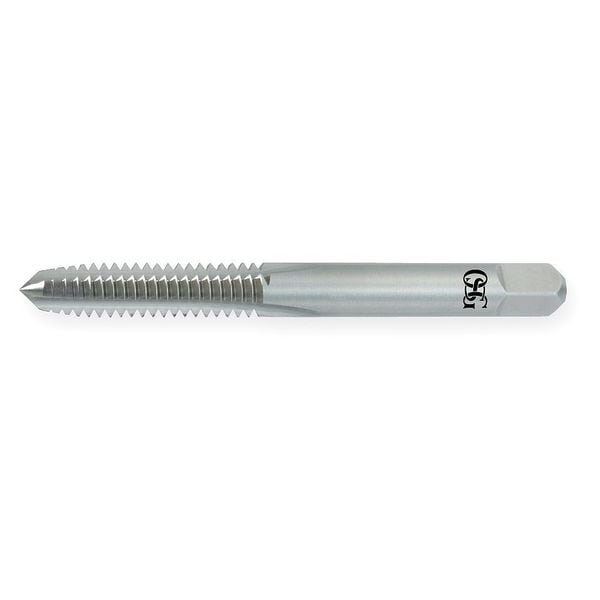

Straight Flute Hand Tap, Bottoming, 3

  • Mfr # 1170201
  • Zoro # G7531842
product price:
$
11.29
/ea

Key Features

Shank Dia.
0.255"
Tap Chamfer
Bottoming
Tap Dimension Type
Inch
Tap Material
High Speed Steel
Tap Size
1/4"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1170201
Zoro #
G7531842
UPC #
-
Country of Origin
Brazil
Item
Straight Flute Hand Tap
Tap Chamfer
Bottoming
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
Number of Flutes
3
Number of Pieces
1
Tap Thread Type
UNC
List Number
103
Thread Direction
Right Hand
Standards
ANSI
Tap Grouping
Tap
Tap Finish
Black Oxide
Cutting Direction - Machining
Right Hand
Series
103
Primary Material Application
Aluminum, Cast Iron, Steel
Shank Type - Machining
Straight
Primary Material Application ISO Code
K, N, P
Coolant Fed
Non-Coolant Through
Tap Shank Standard
ANSI
Extended Neck
Yes
Thread Standard
UNC
Spiral Direction
Neutral
Threads per Inch
20
Thread Limit
H3
Measurement System
Fractional Inch
Helix Angle
0 Degrees
Class of Fit
2B-3B
Shank Type
Square
Tap Application
Blind Hole, Through Hole

Dimensions

Shank Dia.
0.255"
Tap Dimension Type
Inch
Tap Size
1/4"
Overall Length
2-1/2"
Pitch Diameter Limit
H3
Thread Length
1"
Tap Thread Size
1/4"-20
55% Thread Drill Size
#3
Tap Length Standard
ANSI
75% Thread Drill Size
#7
Shank Length
1 5/16 in
65% Thread Drill Size
#5
Thread Size
1/4"-20
Square Size
0.1910 in
Size
1/4"
Neck Length
1.18 in
Square Width
0.19 in
Shank Diameter
0.255 in
Square Length
0.31 in
Wire Rope Length
2.5 in
Length
2.5 in

Description

Straight Flute Tap, Thread Size 1/4 In.-20, UNC, Bottoming, Overall Length 2.5 in, High Speed Steel, Black Oxide, Right Hand, Thread Length 0.75 in, 75 Percent Thread Drill Size #7, Thread Limit H3, Class of Fit 2B-3B

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
