  11. Straight Flute Hand Tap, Plug, 3

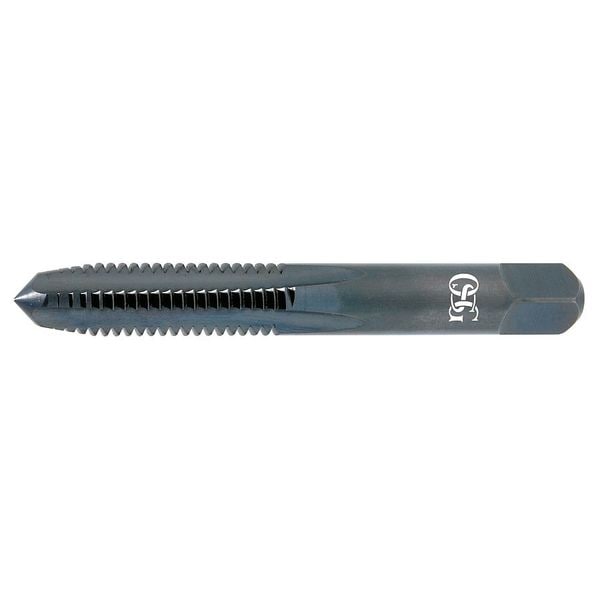

Osg Straight Flute Hand Tap, Plug, 3 1977300 - main

Straight Flute Hand Tap, Plug, 3

  • Mfr # 1977300

  • Zoro # G3685561

product price: $21.59
/ea

Key Features

Shank Dia.
3.58mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
Tap Material
High Speed Steel
Tap Size
M2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1977300
Zoro #
G3685561
UPC #
-
Country of Origin
Japan

Dimensions

Shank Dia.
3.58mm
Tap Dimension Type
Metric
Tap Size
M2
Overall Length
44.00mm
Pitch Diameter Limit
D3
Tap Thread Size
M2-0.40
Thread Length
11.00mm
75% Thread Drill Size
1.60 mm
65% Thread Drill Size
1.65 mm
Square Size
2.79 mm
Thread Size
M2x0.4
Shank Length
32.00 mm
Tap Length Standard
ANSI
55% Thread Drill Size
#51
Size
M2

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Plug
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
Number of Flutes
3
List Number
141
Tap Finish
Bright
Thread Direction
Right Hand
Number of Pieces
1
Tap Grouping
Tap
Standards
ANSI
Tap Thread Type
Metric Coarse
Cutting Direction - Machining
Right Hand
Series
141
Tap Shank Standard
ANSI
Thread Standard
Metric Coarse
Measurement System
Metric
Thread Pitch
0.40mm
Extended Neck
Yes
Secondary Material Application ISO Code
K, N, P
Primary Material Application ISO Code
H, K, M, N, O, P, S
Primary Material Application
All Materials
Thread Limit
D3
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Spiral Direction
Neutral
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Helix Angle
0 Degrees

Description

Straight Flute Tap, Thread Size M2x0.4, Metric, Plug, Overall Length 44 mm, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 11 mm, 75 Percent Thread Drill Size 1.60 mm, Thread Limit D3, Class of Fit 4H-6H
