Shop OSG

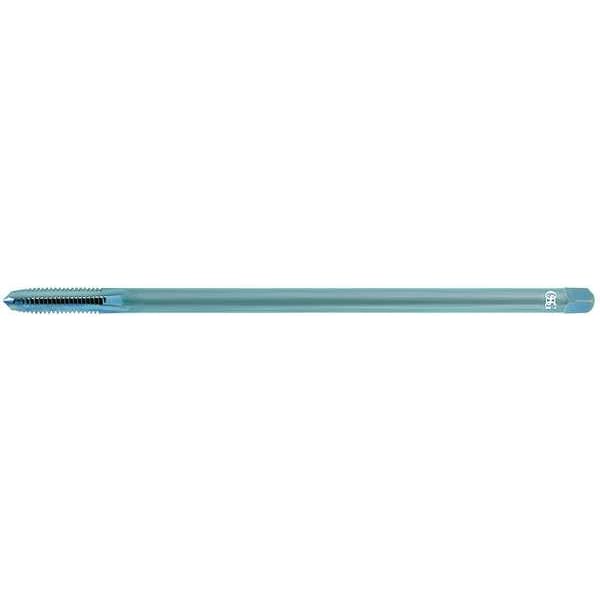

Straight Flute Hand Tap, Plug 4 Flutes

  • Mfr # 1293601

  • Zoro # G9299735

product price:  $154.99
/ea
Free Shipping & Returns

Key Features

Shank Dia.
0.759"
Tap Style
Straight Flute (Hand)
Tap Chamfer
Plug
Tap Dimension Type
Inch
Tap Material
High Speed Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1293601
Zoro #
G9299735
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
0.759"
Tap Dimension Type
Inch
Tap Size
3/4"
Overall Length
10 in
Thread Length
2 in
Pitch Diameter Limit
H3
Tap Thread Size
3/4"-10
Thread Size
3/4"-10
Shank Length
7 13/64 in
55% Thread Drill Size
17.20 mm
65% Thread Drill Size
16.90 mm
75% Thread Drill Size
16.50 mm
Square Size
0.5680 in
Tap Length Standard
ANSI
Size
3/4"
Square Width
0.57 in
Shank Diameter
49/64 in
Square Length
0.57 in

Details

Item
Straight Flute Hand Tap
Tap Style
Straight Flute (Hand)
Tap Chamfer
Plug
Tap Material
High Speed Steel
Thread Direction
Right Hand
Number of Flutes
4
Tap Grouping
Tap
Tap Finish
Black Oxide
List Number
916
Number of Pieces
1
Standards
ANSI
Tap Thread Type
UNC
Cutting Direction - Machining
Right Hand
Series
916
Material Grade - Machining
916
Primary Material Application
Cast Iron, Steel
Threads per Inch
10
Tap Shank Standard
ANSI
Tap Type
Straight Flute
Thread Standard
UNC
Coolant Fed
Non-Coolant Through
Extended Neck
Yes
Measurement System
Fractional Inch
Spiral Direction
Neutral
Extended Shank
Yes
Thread Limit
H3
Primary Material Application ISO Code
K, P
Helix Angle
0 Degrees
Tap Application
Blind Hole, Through Hole
Class of Fit
2B-3B

Description

Extension Tap, Thread Size 3/4 In.-10, UNC, Overall Length 10 in, High Speed Steel, Black Oxide, Right Hand, 10
