  11. Thread Forming Tap, 1/4"-20, Modified Bottoming, V

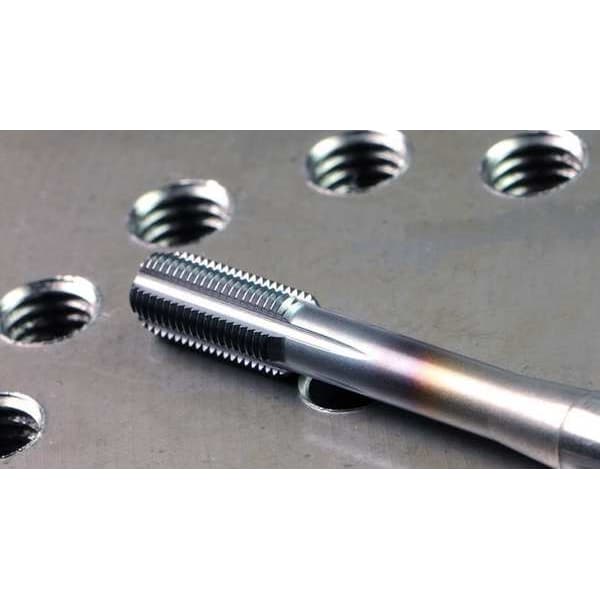

Osg Thread Forming Tap, 1/4"-20, Modified Bottoming, V 1625514026 - main

Thread Forming Tap, 1/4"-20, Modified Bottoming, V

  • Mfr # 1625514026

  • Zoro # G0217697

product price: $91.99
/ea
Free Shipping & Returns

Key Features

Shank Dia.
0.255"
Tap Style
Thread Forming
Tap Chamfer
Modified Bottoming
Tap Dimension Type
Inch
Tap Material
High Speed Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1625514026
Zoro #
G0217697
UPC #
-
Country of Origin
Japan

Dimensions

Shank Dia.
0.255"
Tap Dimension Type
Inch
Tap Size
1/4"
Overall Length
5.910"
Thread Length
1-1/8"
Tap Thread Size
1/4"-20
Pitch Diameter Limit
H6
Shank Length
4 11/16 in
65% Thread Drill Size
#5
Square Size
0.1910 in
Thread Size
1/4"-20
Tap Length Standard
DIN
75% Thread Drill Size
#7
55% Thread Drill Size
#3

Details

Item
Thread Forming Tap
Tap Style
Thread Forming
Tap Chamfer
Modified Bottoming
Tap Material
High Speed Steel
Thread Direction
Right Hand
Number of Flutes
0
Tap Thread Type
UNC
Tap Finish
V
Number of Pieces
1
List Number
16255
Standards
DIN
Cutting Direction - Machining
Right Hand
Series
16255
Tap Shank Standard
DIN
Thread Standard
UNC
Primary Material Application
Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel, Steel
Material Grade - Machining
16255
Secondary Material Application ISO Code
S
Threads per Inch
20
Measurement System
Fractional Inch
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
H, M, N, P
Secondary Material Application
Nickel, Titanium
Class of Fit
6H
Tap Type
Forming
Extended Neck
No
Thread Limit
H6
Spiral Direction
Neutral
Extended Shank
Yes
Helix Angle
0 Degrees

Description

Extension Tap, Thread Size 1/4 In.-20, UNC, Overall Length 5 29/32 in, Cobalt, V, Right Hand, 20
