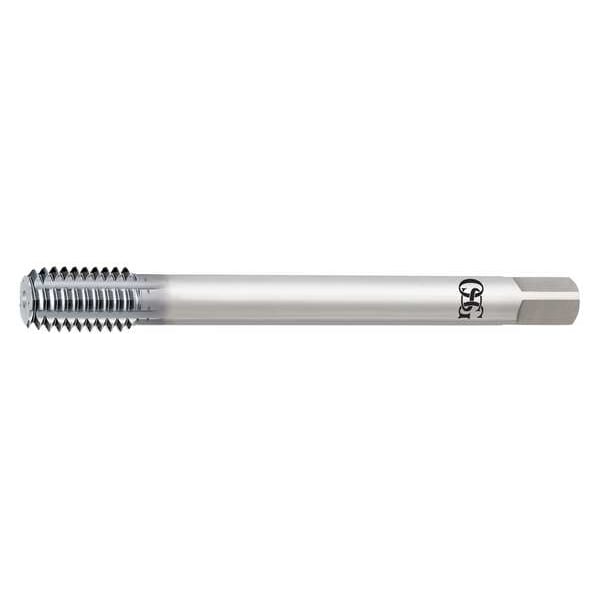

Thread Forming Tap, 3/8"-24, Plug, V, 0 Flutes

  • Mfr # 1625038249

  • Zoro # G0216041

product price:
$
88.97
/ea

Key Features

Tap Thread Size
3/8"-24
Tap Chamfer
Plug
Tap Finish
V
Number of Flutes
0
Tap Style
Thread Forming
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1625038249
Zoro #
G0216041
UPC #
-
Country of Origin
Japan

Dimensions

Tap Thread Size
3/8"-24
Overall Length
3.940"
Shank Dia.
0.381"
Tap Dimension Type
Inch
Thread Length
1-13/16"
Pitch Diameter Limit
H7
Tap Size
3/8"
Shank Length
2 11/32 in
Square Size
0.2850 in
Thread Size
3/8"-24
65% Thread Drill Size
9.05 mm
Tap Length Standard
DIN
55% Thread Drill Size
23/64 in
75% Thread Drill Size
9.00 mm
Square Width
0.29 in
Shank Diameter
0.38 in
Neck Length
1.58 in
Square Length
0.438 in
Wire Rope Length
3.94 in
Length
3.94 in

Details

Item
Thread Forming Tap
Tap Chamfer
Plug
Tap Finish
V
Number of Flutes
0
Tap Style
Thread Forming
List Number
16250
Tap Thread Type
UNF
Tap Material
Cobalt
Number of Pieces
1
Thread Direction
Right Hand
Standards
DIN
Series
16250
Cutting Direction - Machining
Right Hand
Extended Neck
Yes
Threads per Inch
24
Material Grade - Machining
16250
Primary Material Application
Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel, Steel, Tool and Die Steel
Class of Fit
2B-3B
Secondary Material Application ISO Code
H, S
Secondary Material Application
Nickel, Titanium
Thread Standard
UNF
Primary Material Application ISO Code
H, M, N, P
Coolant Fed
Non-Coolant Through
Thread Limit
H7
Tap Shank Standard
ANSI
Features
Produces No Chips
Spiral Direction
Neutral
Helix Angle
0 Degrees
Shank Type
Square
Tap Application
Blind Hole, Through Hole

Description

Thread Forming Tap, Thread Size 3/8 In.-24, UNF, Overall Length 3.94 in, Cobalt, V, Right Hand, Thread Length 0.63 in, 75 Percent Thread Drill Size 9.00 mm, Thread Limit H7, Class of Fit 2B-3B, Tap Length Standard DIN
