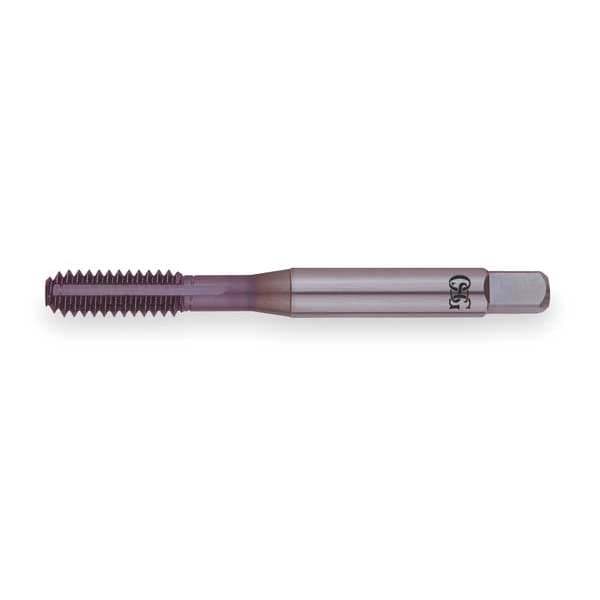

Thread Forming Tap, #4-40, Bottoming, TiCN, 0 Flutes

  • Mfr # 1400104908

  • Zoro # G3068791

product price:  $19.19
/ea

Key Features

Tap Thread Size
#4-40
Tap Chamfer
Bottoming
Tap Finish
TiCN
Number of Flutes
0
Standards
ANSI
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1400104908
Zoro #
G3068791
UPC #
-
Country of Origin
Japan

Dimensions

Tap Thread Size
#4-40
Tap Dimension Type
Inch
Pitch Diameter Limit
H3
Tap Size
#4
Overall Length
1-7/8"
Thread Length
9/16"
Shank Dia.
0.141"
Square Size
0.1100 in
75% Thread Drill Size
2.52 mm
Thread Size
#4-40
55% Thread Drill Size
2.60 mm
65% Thread Drill Size
2.55 mm
Shank Length
1 9/32 in
Neck Length
0.56 in
Shank Diameter
0.141 in
Square Length
0.188 in
Square Width
0.11 in
Wire Rope Length
1.88 in

Details

Item
Thread Forming Tap
Tap Chamfer
Bottoming
Tap Finish
TiCN
Number of Flutes
0
Standards
ANSI
Thread Direction
Right Hand
Tap Material
Cobalt
List Number
14001
Number of Pieces
1
Tap Grouping
Tap
Tap Style
Thread Forming
Tap Thread Type
UNC
Cutting Direction - Machining
Right Hand
Series
14001
Class of Fit
2B-3B
Threads per Inch
40
Features
Performance Form Taps for Materials Less Than 32Rc
Thread Standard
UNC
Material Grade - Machining
14001
Extended Neck
No
Primary Material Application
Aluminum, Brass, Bronze, Copper, Steel
Primary Material Application ISO Code
N, P
Spiral Direction
Neutral
Thread Limit
H3
Secondary Material Application ISO Code
H, M, P
Secondary Material Application
Hardened Steel, Stainless Steel, Steel, Tool and Die Steel
Coolant Fed
Non-Coolant Through
Helix Angle
0 Degrees
Tap Application
Blind Hole, Through Hole
Shank Type
Square

Description

Thread Forming Tap, Thread Size #4-40, UNC, Overall Length 1.88 in, Cobalt, TiCN, Right Hand, Thread Length 0.3 in, 75 Percent Thread Drill Size 2.52 mm, Thread Limit H3, Class of Fit 2B-3B
