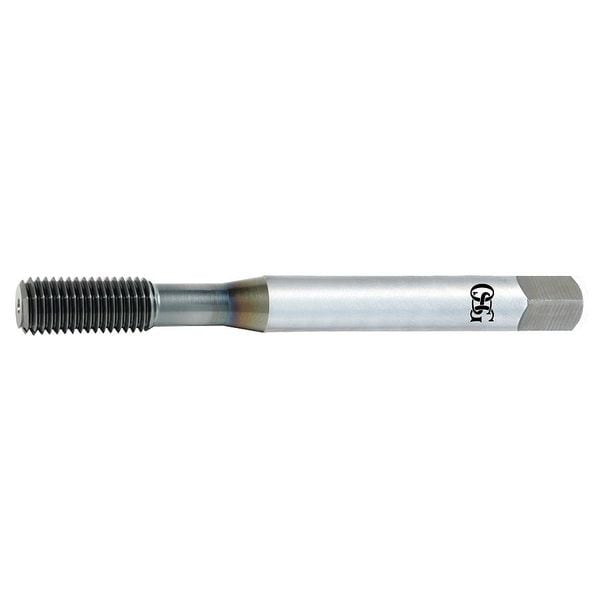

Thread Forming Tap, 5/16"-18, Bottoming, TiCN, 0 Flutes

  • Mfr # 1405008708

  • Zoro # G9251085

product price:  $55.79
/ea

Key Features

Tap Thread Size
5/16"-18
Tap Chamfer
Bottoming
Tap Finish
TiCN
Number of Flutes
0
Shank Dia.
0.318"
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1405008708
Zoro #
G9251085
UPC #
-
Country of Origin
Japan

Dimensions

Tap Thread Size
5/16"-18
Shank Dia.
0.318"
Tap Size
5/16"
Tap Dimension Type
Inch
Overall Length
2-23/32"
Thread Length
1-1/8"
Pitch Diameter Limit
H8
Thread Size
5/16"-18
Square Size
0.2380 in
55% Thread Drill Size
7.40 mm
Shank Length
1 19/32 in
65% Thread Drill Size
7.30 mm
75% Thread Drill Size
7.20 mm
Square Width
0.67 in
Shank Diameter
0.318 in
Square Length
0.665 in

Details

Item
Thread Forming Tap
Tap Chamfer
Bottoming
Tap Finish
TiCN
Number of Flutes
0
Number of Pieces
1
Tap Material
Powdered Metal
Tap Grouping
Tap
List Number
14050
Standards
ANSI
Tap Thread Type
UNC
Tap Style
Thread Forming
Thread Direction
Right Hand
Series
14050
Cutting Direction - Machining
Right Hand
Thread Standard
UNC
Primary Material Application
Aluminum, Brass, Bronze, Copper, Stainless Steel, Steel
Spiral Direction
Neutral
Threads per Inch
18
Coolant Fed
Non-Coolant Through
Thread Limit
H8
Secondary Material Application
Hardened Steel, Stainless Steel
Material Grade - Machining
14050
Extended Neck
No
Secondary Material Application ISO Code
H, M
Primary Material Application ISO Code
M, N, P
Helix Angle
0 Degrees

Description

Thread Forming Tap, Thread Size 5/16 In.-18, UNC, Overall Length 2.72 in, Powdered Metal, TiCN, Right Hand, Thread Length 0.67 in, 75 Percent Thread Drill Size 7.20 mm, Thread Limit H8
