  11. Thread Forming Tap, M3-0.50, Bottoming, TiCN, 0 Flutes

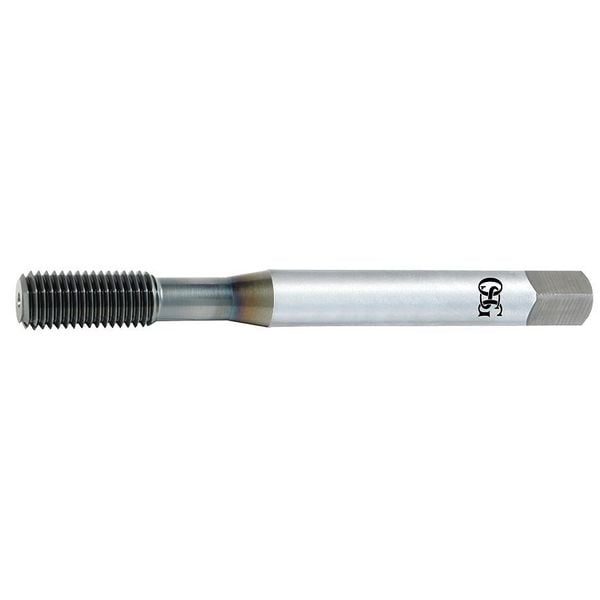

Osg Thread Forming Tap, M3-0.50, Bottoming, TiCN, 0 Flutes 1415001008 - main

Thread Forming Tap, M3-0.50, Bottoming, TiCN, 0 Flutes

  • Mfr # 1415001008

  • Zoro # G9251191

product price: $45.29
/ea

Key Features

Tap Thread Size
M3-0.50
Tap Chamfer
Bottoming
Tap Finish
TiCN
Number of Flutes
0
Thread Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1415001008
Zoro #
G9251191
UPC #
-
Country of Origin
Japan

Dimensions

Tap Thread Size
M3-0.50
Tap Size
M3
Overall Length
49.00mm
Pitch Diameter Limit
D3
Thread Length
16.00mm
Shank Dia.
3.58mm
Tap Dimension Type
Metric
55% Thread Drill Size
2.80 mm
75% Thread Drill Size
2.75 mm
Thread Size
M3x0.5
Square Size
2.79 mm
65% Thread Drill Size
7/64 in
Shank Length
32.80 mm

Details

Item
Thread Forming Tap
Tap Chamfer
Bottoming
Tap Finish
TiCN
Number of Flutes
0
Thread Direction
Right Hand
Tap Material
Powdered Metal
Number of Pieces
1
Tap Grouping
Tap
Standards
ANSI
Tap Style
Thread Forming
List Number
14150
Tap Thread Type
Metric Coarse
Cutting Direction - Machining
Right Hand
Series
14150
Thread Pitch
0.50mm
Features
Performance Form Taps for Materials Less Than 32Rc
Primary Material Application ISO Code
K, M, N, P
Thread Limit
D3
Coolant Fed
Non-Coolant Through
Extended Neck
No
Material Grade - Machining
14150
Thread Standard
Metric Coarse
Secondary Material Application
Hardened Steel, Stainless Steel
Spiral Direction
Neutral
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Secondary Material Application ISO Code
H, M
Helix Angle
0 Degrees

Description

Thread Forming Tap, Thread Size M3x0.5, Metric, Overall Length 49 mm, Powdered Metal, TiCN, Right Hand, Thread Length 6.3 mm, 75 Percent Thread Drill Size 2.75 mm, Thread Limit D3
