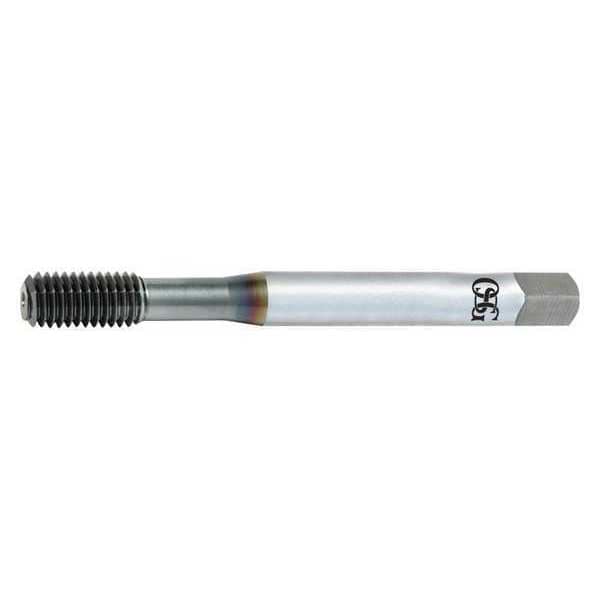

Thread Forming Tap, M3-0.50, Plug, Bright, 0 Flutes

  • Mfr # 1410110700

  • Zoro # G0219103

product price:  $18.79
/ea

Key Features

Tap Thread Size
M3-0.50
Tap Chamfer
Plug
Tap Finish
Bright
Number of Flutes
0
Thread Direction
Right Hand
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1410110700
Zoro #
G0219103
UPC #
-
Country of Origin
Japan

Dimensions

Tap Thread Size
M3-0.50
Overall Length
49.30mm
Shank Dia.
3.60mm
Thread Length
15.90mm
Tap Dimension Type
Metric
Pitch Diameter Limit
D5
Tap Size
M3
Thread Size
M3x0.5
55% Thread Drill Size
2.80 mm
75% Thread Drill Size
2.75 mm
Shank Length
33.00 mm
65% Thread Drill Size
7/64 in
Square Size
2.79 mm
Neck Length
16 mm
Shank Diameter
3.58 mm
Square Width
2.79 mm
Square Length
4.76 mm
Wire Rope Length
49 mm

Details

Item
Thread Forming Tap
Tap Chamfer
Plug
Tap Finish
Bright
Number of Flutes
0
Thread Direction
Right Hand
Number of Pieces
1
Tap Thread Type
Metric Coarse
Tap Style
Thread Forming
Tap Material
Cobalt
List Number
14101
Standards
ANSI
Cutting Direction - Machining
Right Hand
Series
14101
Coolant Fed
Non-Coolant Through
Secondary Material Application
Hardened Steel, Stainless Steel, Steel, Tool and Die Steel
Thread Pitch
0.50mm
Secondary Material Application ISO Code
H, M, P
Primary Material Application
Aluminum, Brass, Bronze, Copper, Steel
Features
For a Wide Range of Materials, Forming Tap
Thread Limit
D5
Extended Neck
No
Primary Material Application ISO Code
N, P
Spiral Direction
Neutral
Thread Standard
Metric
Material Grade - Machining
14101
Helix Angle
0 Degrees
Tap Application
Blind Hole, Through Hole
Class of Fit
6H
Shank Type
Square

Description

Thread Forming Tap, Thread Size M3x0.5, Metric, Overall Length 49 mm, Cobalt, Bright (Uncoated), Right Hand, Thread Length 6.2 mm, 75 Percent Thread Drill Size 2.75 mm, Thread Limit D5, Class of Fit 6H
