  9. Digital Multimeter, 600 Max. AC Volts, 600 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps
This item is Discontinued.

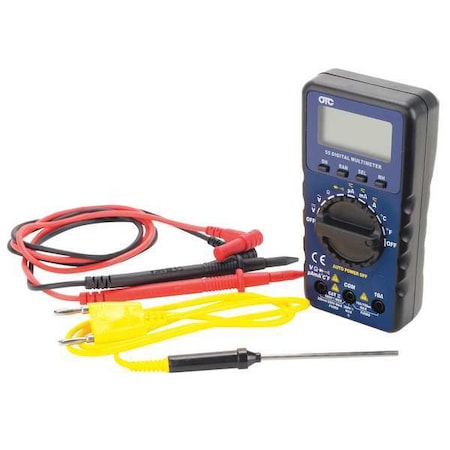

Otc Digital Multimeter, 600 Max. AC Volts, 600 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps 3910

Digital Multimeter, 600 Max. AC Volts, 600 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps (Discontinued)

  • Mfr # 3910
  • Zoro # G2016248
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3910
Zoro #
G2016248
UPC #
731413549397
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 mo
Overall Width
7.2 cm
Battery Size
AA
Depth
3.7 cm
Overall Height
14 cm

Details

Multimeter Style
Compact - Basic Features
Item
Digital Multimeter
Instrument Counts
2,000
Basic DC Accuracy
+/-0.50%
Instrument Safety Rating
CAT II 600V
Max. AC Volts
600
Max. DC Volts
600
Max. AC Amps
10
Max. DC Amps
10
Audible Continuity
No
Max. Ohms
20 megohm
Calibration Certificate Included
No
Temp. Range
-58 Degrees to 392 Degrees F
Standards
CE, EMC/LVD, IEC 1010, Pollution Degree 2
Diode Test
Yes
Min./Max. Memory
yes
Includes
Temperature Probe, Test Leads, Warranty Statement
Duty Cycle
No
Bar Graph
No
Auto Ranging
Yes
Peak Hold
No
Interface
No
AC Response
40 Hz to 400 Hz
Special Features
Continuity Buzzer
Series
OTC (R) 3910
Data Logging
No
Data Hold
Yes
Auto Power Off
Yes
Battery Type
AA Alkaline
Capacitance Range
No
Display
LCD
Calibration Certificate
Not Included
Maximum Temperature Measurement
392 Degrees F
Minimum DC Current Measurement
0 mA
Maximum AC Voltage Measurement
600 V
Basic AC Current Accuracy
+/-2.5%
Maximum Resistance Measurement
20 megaohm
Safety Rating_BACKGROUND
3910 CAT II 600V
Battery Access
Yes
Basic AC Voltage Accuracy
+/-1.50%
Resistance Measurement Accuracy
+/-2%
Basic DC Voltage Accuracy
+/-0.5%; +/-0.8%
Minimum AC Voltage Measurement
0 V
Bar Graph Included
No
Maximum DC Voltage Measurement
600 V
Maximum DC Current Measurement
10 A
Maximum AC Current Measurement
10 A
Basic DC Current Accuracy
+/-2%
Battery Chemistry
Alkaline
Minimum/Maximum Memory
Yes
Style
Compact
Minimum DC Voltage Measurement
0 V
AC Response Calculation
40 Hz to 400 Hz
Computer Interface Connection Type
None
Display Type
LCD
Multimeter Features
Standard
Minimum Temperature Measurement
-58 Degrees F
Minimum AC Current Measurement
0 uA
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance

Description

Digital Multimeter, Audible Continuity No, Basic AC Voltage Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-0.5 Percent; +/-0.8 Percent, Data Hold Yes, Basic DC Current Accuracy +/-2 Percent, Instrument Safety Rating CAT II 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 2,000, Special Features Continuity Buzzer, Maximum AC Current Measurement 10 A, Calibration Certificate Included No, Maximum DC Current Measurement 10 A
