Shop All Electric Hydraulic Pumps
Otc

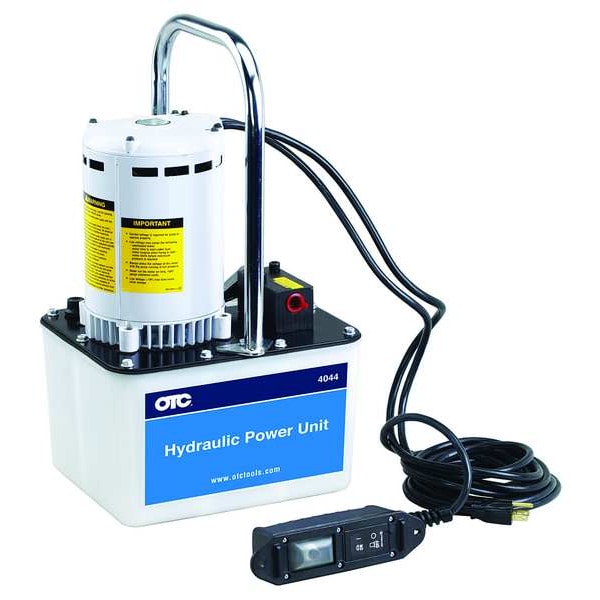

Hydraulic Electric Pump, High Force, 0.5 hp

product price: $3,495.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type High Force
  • Reservoir Capacity (Cu.-In.) 295 cu in
  • Reservoir Capacity (Gal.) 2 gal
  • Oil Displacement @ 100 PSI 240 cu in/min
  • Oil Displacement @ 10,000 PSI 45 cu in/min
See all product information

Product Information

Dimensions

Control Pendant Size (Ft.) 6 ft
Remote Control Cord Length 6 ft
Overall Length 10.3 in
Overall Height 22 in
Control Pendant Size 6 ft
Overall Width 20.5 in

Details

Item Hydraulic Electric Pump
Type High Force
Reservoir Capacity (Cu.-In.) 295 cu in
Reservoir Capacity (Gal.) 2 gal
Oil Displacement @ 100 PSI 240 cu in/min
Oil Displacement @ 10,000 PSI 45 cu in/min
HP 0.5 hp
Voltage 115 V AC
Control Valve Remote 2 Way/2 Position
Includes 6 Foot Remote Control Cord
Reservoir Material Polyethylene
Charger Input Voltage 115V AC
Control Valve Type 2-Position, 2-Way
Cylinder Compatibility Single Acting
Horsepower - Maximum 1/2 hp
Reservoir Capacity 1.9 gal
Phase Single
Nameplate Voltage 115V AC
Frequency 60 Hz
Displacement @ 10,000 PSI 45 cu in/min
Operating Pressure - Maximum 10,000 psi
Displacement @ 100 psi 240 cu in/min

Description

Hydraulic Electric Pump, Horsepower - Maximum 1/2 hp, Nameplate Voltage 115V AC, Phase Single, Operating Pressure - Maximum 10,000 psi, Displacement @ 10,000 PSI 45 cu in/min, Control Valve Type 2-Position, 2-Way, Reservoir Capacity 1.9 gal, Reservoir Material Polyethylene, Overall Height 22 in, Cylinder Compatibility Single Acting, Charger Input Voltage 115V AC, Control Pendant Size 6 ft, Displacement @ 100 psi 240 cu in/min, Frequency 60 Hz, Includes 6 Foot Remote Control Cord
