Shop All Air Hydraulic Pumps
Otc

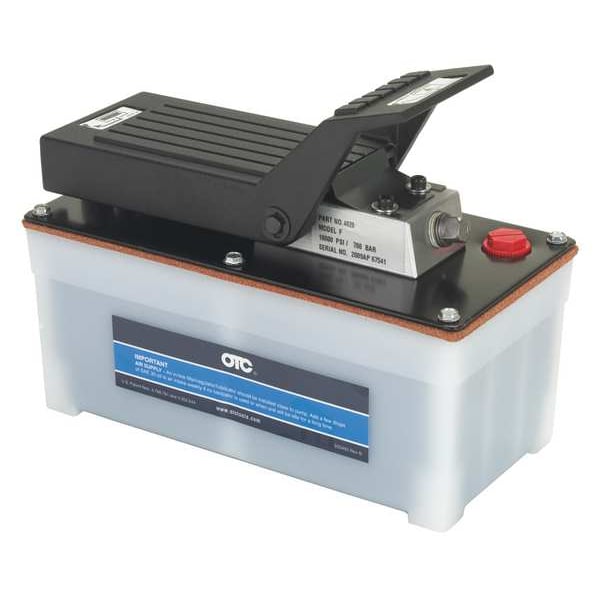

Hydraulic Pump

product price: $740.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Oil Capacity (Cu.-In.) 80 cu in
  • Reservoir Capacity (Gal.) 98 gal
  • Oil Displacement @ 0 PSI 59.00 cu in/min
  • Oil Displacement @ 10,000 PSI 4 cu in/min
  • Operating Air PSI 100
See all product information

Product Information

Dimensions

Height (In.) 8.9 in
Base Size (In.) 10.4 × 5.4 × 8.9 in
Length (In.) 10.4 in
Width (In.) 5.4 in
Air Intake Connection Size 1/4 in
Overall Width 5.4 in
Overall Length 10.4 in
Overall Height 8.9 in
Media Intake Connection Size 3/8 in

Details

Item Hydraulic Pump
Oil Capacity (Cu.-In.) 80 cu in
Reservoir Capacity (Gal.) 98 gal
Oil Displacement @ 0 PSI 59.00 cu in/min
Oil Displacement @ 10,000 PSI 4 cu in/min
Operating Air PSI 100
Oil Displacement @ 5000 PSI 30 cu in/min
Air Consumption (SCFM) 20
Actuation Type Foot
Type Air Powered
Displacement @ 10,000 PSI 4 cu in/min at High Pressure
Air Inlet NPT (In.) 1/4 Female
Capacity (PSI) 10,000
dBA 85
Usable Oil Capacity Horizontal Mount 462 cu in
Displacement (GPM) @ 0 PSI 59 cu in/min at Low Pressure
Fluid Port NPT (In.) 3/8 NPTF
Features Ergonomic Design, Pedal Lock Function, Pressure Relief Valve
Oil Displacement @ 5000 psi 30 cu in/min
Sound Level - Maximum 85 dBA
Operating Pressure - Maximum 10,000 psi
Flow Rate - Maximum 4 cu in/min
Reservoir Capacity 98 cu in
Air Consumption - Maximum 20 scfm
Control Valve Type 2-Position
Air Intake Pressure - Maximum 100 psi
Air Intake Connection Type FNPT
Displacement @ 5000 psi 30 cu in/min

Description

Hydraulic Pump, Reservoir Capacity 98 cu in, Air Intake Pressure - Maximum 100 psi, Air Intake Connection Size 1/4 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 30 cu in/min, Displacement @ 10,000 PSI 4 cu in/min, Sound Level - Maximum 85 dBA, Control Valve Type 2-Position, Actuation Type Foot, Air Consumption - Maximum 20 scfm, Air Intake Connection Type FNPT, Features Ergonomic Design, Pedal Lock Function, Pressure Relief Valve, Flow Rate - Maximum 4 cu in/min
