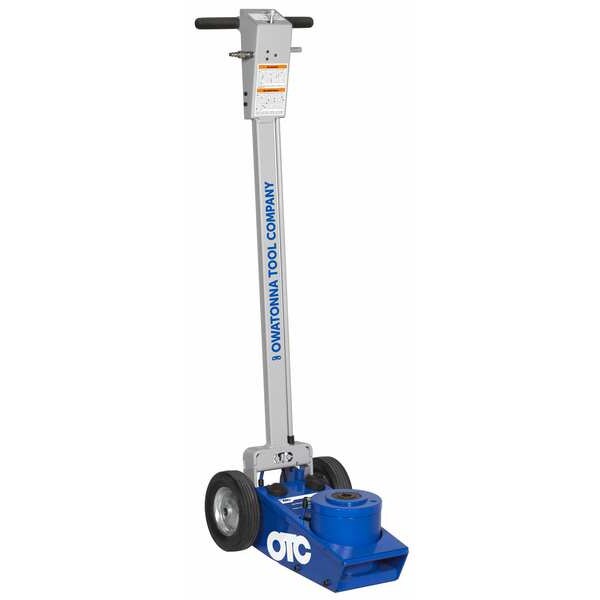

Otc Hydraulic Under Axle Jack UA27 - main

Hydraulic Under Axle Jack

  • Mfr # UA27

  • Zoro # G401709035

product price: $3,921.99
/ea
Item requires special delivery charges. A $245.00 per item surcharge will be applied.

Key Features

Overall Width
12 in
Material
Steel
Handle Type
T-Handle
Lifting Capacity
27 1/2 ton
Base Width
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UA27
Zoro #
G401709035
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
12 in
Base Width
12 in
Lifting Height Min.
8 1/4 in
Base Length
22 in
Chassis Length
22 in
Caster Wheel Dia.
3 in
Handle Length
48 3/4 in
Lifting Height Max.
21 3/8 in
Base Height
8 1/4 in
Saddle Diameter
3 in
Minimum Lift Height
8 1/4 in
Saddle Length
22 in
Chassis Width
12 in
Wheel Diameter
7 7/8 in
Maximum Lift Height
21 3/8 in
Chassis Height
8 9/32 in
Extended Height
69 87/100 in

Details

Material
Steel
Item
Air/Hydraulic Service Jack
Handle Type
T-Handle
Lifting Capacity
27 1/2 ton
Features
4-Position Handle Makes it Easy to Position Under Vehicles with Low Overhangs, Chrome Plated Ram for Additional Rust Resistance, Dependable Venturi Vacuum Power Return System Feature Lowers Piston Ram Quickly with No Load, Large Rear Wheels Provide Positioning and Portability, Welded Hydraulic Pump and Cylinder Construction Provides Increased Strength and Leak Prevention, Wide Rugged Base Adds Stability and Strength, Wiper Seals Protect Hydraulic System From Contaminants
Standards
ASME PASE 2019
Number of Casters
2
Power Raise
21 3/8 in
Application
Heavy-Duty
Includes
(2) Saddle Attachments for Multiple Height Adjustments
Operation Type
Air
Load Capacity
27.5 ton
Power Source
Air/Mechanical
Lifting Actuator
Manual Handle
Saddle Shape
Round
Stroke
4 15/16 in
Item Weight
128 lb
Body Material
Steel
Minimum Operating Pressure
90 psi
Jack Type
Axle Jack
Maximum Operating Pressure
175 psi
For Lifting
Heavy Duty Vehicles
Number of Wheels
2

Description

Truck Axle Jacks, Jack Type Axle Jack, Load Capacity 27.5 ton, Body Material Steel, Lifting Actuator Manual Handle, Minimum Lift Height 8 1/4 in, Maximum Lift Height 21 3/8 in, Power Source Air/Mechanical, For Lifting Heavy Duty Vehicles, Chassis Height 8 9/32 in, Chassis Length 22 in, Chassis Width 12 in, Extended Height 69 87/100 in

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
