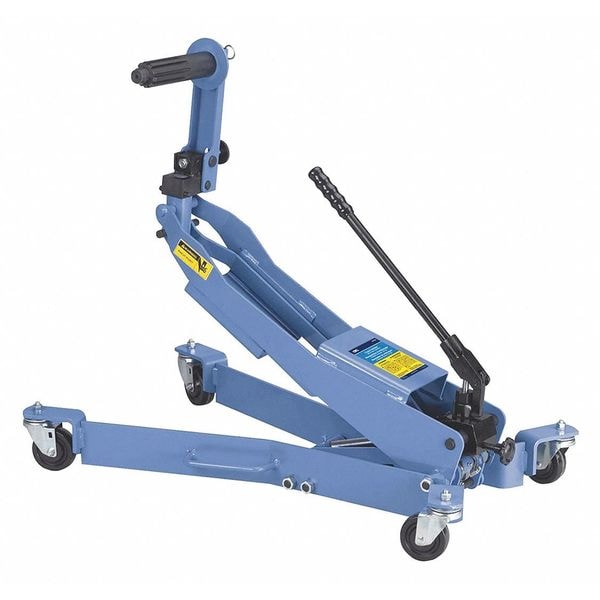

Otc Low Clearance Truck Clutch 5018A - main

Low Clearance Truck Clutch

  • Mfr # 5018A

  • Zoro # G1947132

product price: $1,524.99
/ea
Item requires special delivery charges. A $170.00 per item surcharge will be applied.

Key Features

Overall Height
38-1/4"
Overall Length
32-3/8"
Overall Width
26 7/10 in
Load Capacity
0.13 ton
Number of Drums
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5018A
Zoro #
G1947132
UPC #
-
Country of Origin
China

Dimensions

Overall Height
38-1/4"
Overall Length
32-3/8"
Overall Width
26 7/10 in
Retracted Length
15 in
Lifting Height Max.
38 1/4 in
Caster Wheel Dia.
3 1/2 in
Minimum Height
15 in
Wheel Diameter
3 1/2 in
Maximum Lift Height
38 1/4 in
Minimum Lift Height
15 in
Spline Shaft Diameter
2 in

Details

Load Capacity
0.13 ton
Item
Hydraulic Service Jack
Number of Drums
0
Includes
1-1/4 in Pilot to Aid in Alignment, 2 in Splined Shaft
Number of Casters
4
Features
360 Degrees Swivel Head, Floor Space is 32-3/8 in Long by 24-1/2 in at Widest Point, Handles 14 in and 15-1/2 in Clutch Assemblies Weighing Up To250 lb Swivel Casters Provide Easy Maneuverability., Includes a 2 in Splined Shaft with a 1-1/4 in Pilot to Aid in Alignment, Makes the Task an Easy, one-Person Job., Minimum Height of 15 in Allows Access Below Side Faring, Open Stance for Ease of Access to the Work., Uniquelinkage Design Raises the Load from Horizontal to Vertical Asthe Pump is Cycled. This Eliminates any Lifting of the Clutch by the Operator, When Raised, Center Line of Clutch will be 38-1/4 in Off Floor
Lifting Capacity
250 lb
Operation Type
Manual
Application
Flywheel Handler, Truck
Lifting Actuator
Manual Handle
Caster Type
(4) Swivel
Item Weight
250 lb
For Lifting
Flywheel Handler, Truck
Securing Mechanism
Spline
Jack Type
Clutch Jack
Body Material
Steel
For Vehicle Type
Truck
Power Source
Mechanical
Number of Wheels
4

Description

Air/Hydraulic Service Jack, Power Source Mechanical, Load Capacity 0.13 ton, Body Material Steel, Lifting Actuator Manual Handle, Minimum Lift Height 15 in, Maximum Lift Height 38 1/4 in, Securing Mechanism Spline, For Lifting Flywheel Handler, Truck, Jack Type Clutch Jack, Caster Type (4) Swivel
