  11. Transmission Jack, 36-1/2 in. L, 1000 lb.
Shop All Transmission Jacks
Otc

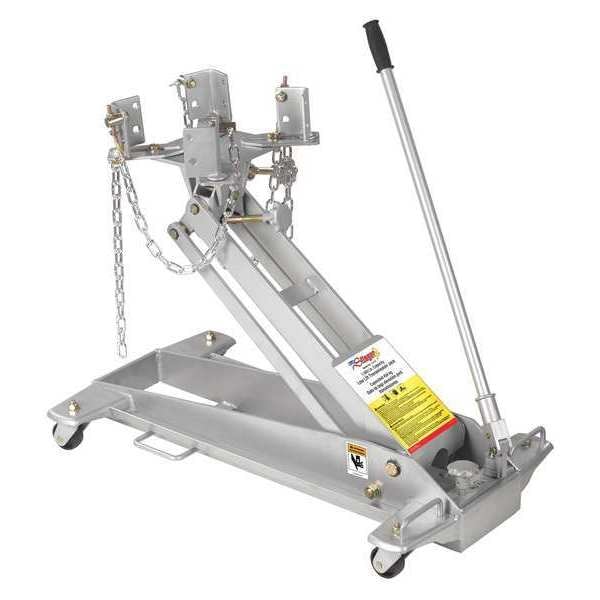

Transmission Jack, 36-1/2 in. L, 1000 lb.

product price: $669.99
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Type Low-Lift
  • Includes Adjustable Bracket
  • Features Safety Overload Prevents Use Beyond Its Rated Capacity
  • Tilt Capacity Rear 17.0 Degrees
  • Height 36 1/2 in
See all product information

Product Information

Dimensions

Height 36 1/2 in
Min. Height (In.) 7 1/2 in
Lifting Height Min. (In.) 7 1/2 in
Lifting Height Max. (In.) 29 3/4 in
Base Size (In.) 34 1/2 in
Max. Height (In.) 29 3/4 in
Length (In.) 34 1/2 in
Minimum Lift Height 7 1/2 in
Overall Width 9 in
Minimum Height 6 1/2 in
Overall Height 36 1/2 in
Maximum Lift Height 29 3/4 in
Overall Length 2 1/2 in

Details

Type Low-Lift
Includes Adjustable Bracket
Features Safety Overload Prevents Use Beyond Its Rated Capacity
Tilt Capacity Rear 17.0 Degrees
Lifting Capacity (Lb.) 1,000 lb
Head Yes
Tilt Capacity Front 60.0 Degrees
Item Transmission Jack
Tilt Capacity Side 31 Degrees
Lifting Range 7 1/2 in to 29 3/4 in
Platform Tilt Angle Back: 17 Degrees , Forward: 67 Degrees , Side to Side: 30 Degrees
Lifting Actuator Manual Handle
Load Capacity 0.5 ton
Body Material Steel
Securing Mechanism Chain
Jack Type Transmission Jack
Power Source Hydraulic
Handle Type Pump
Caster Type (4) Swivel

Description

Transmission Jack, Power Source Hydraulic, Load Capacity 0.5 ton, Body Material Steel, Lifting Actuator Manual Handle, Minimum Lift Height 7 1/2 in, Maximum Lift Height 29 3/4 in, Securing Mechanism Chain, Jack Type Transmission Jack, Caster Type (4) Swivel, Features Safety Overload Prevents Use Beyond Its Rated Capacity, Handle Type Pump, Includes Adjustable Bracket, Minimum Height 6 1/2 in
