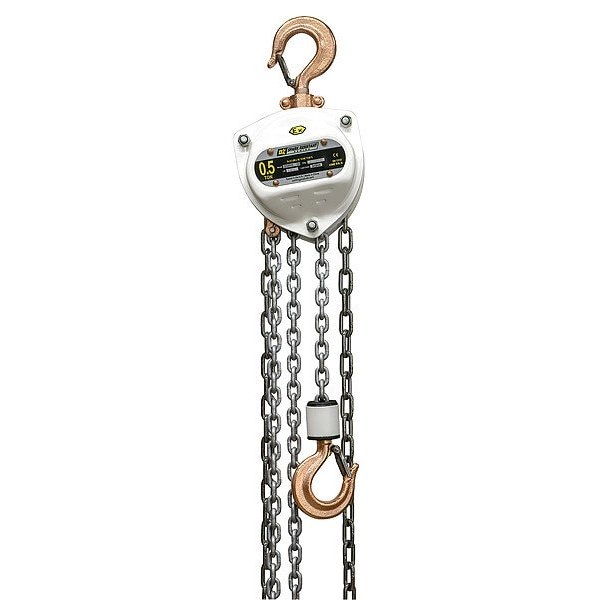

Manual Chain Hoist, 40 ft Chain L, White

  • Mfr # OZSR005-40CH

  • Zoro # G416152253


product price: $2,476.99
/ea
Free Shipping & Returns

Key Features

Pull to Lift Rated Load
54 lb
Mount Type
Hook Mounted - No Trolley
Standards
AS1418.2, ASME B30.16, ATEX, CE
Power Source
Manual
Mfr. Warranty Length
1 yr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OZSR005-40CH
Zoro #
G416152253
UPC #
-
Country of Origin
China

Dimensions

Chain Length
40 ft
Mfr. Warranty Length
1 yr
Body Depth
5 3/16 in
Body Width
5 13/16 in
Lifting Hook Opening Width
29/32 in
Maximum Lifting Length
40 ft

Details

Pull to Lift Rated Load
54 lb
Mount Type
Hook Mounted - No Trolley
Standards
AS1418.2, ASME B30.16, ATEX, CE
Item
Chain Hoist
Power Source
Manual
Chain Finish
Dacromet
Chain Material
Stainless Steel
Number of Load Chains
1
Resistance Properties
Spark Resistant
Color
White
Product Type
Chain Hoist
For Outdoor Use
Yes
Lifting Hook Type
Hook with Safety Latch
Maximum Lifting Capacity
0.5 ton
Brake Type
Weatherproof Load Brake
Operating Position
Horizontal, Vertical
Overload Protection Included
No
Features
Certified Explosion-Proof for Hazardous Environments, Fully Enclosed Gearing Protects Gears from Contamination and Debris, Low Headroom Design Maximizes Lift in Confined Spaces, Minimal Lifting Effort Required (20% to 35% Less than Competitors), Unique Hand Wheel Design Prevents Chain Jamming and Enables Smooth Operation from Various Angles
Includes Brake
Brake Included
Headroom
13 19/32 in
Maximum Pulling Capacity
0.5 ton

Description

Manual Chain Hoist, Chain Length 40 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 13 19/32 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 1,000 lb, Maximum Lifting Length 40 ft, Mount Type Hook Mounted - No Trolley, Body Depth 5 3/16 in, Body Width 5 13/16 in, Brake Type Weatherproof Load Brake, Chain Material Stainless Steel, Color White

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
