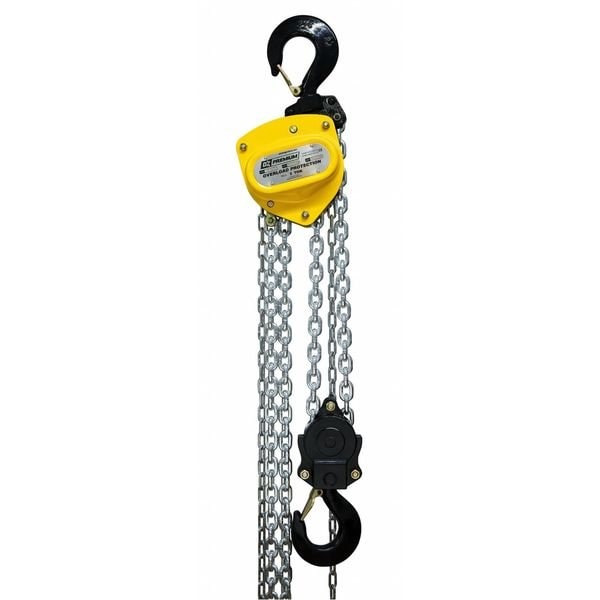

Manual Chain Hoist, 40 ft Chain L, Yellow

Mfr # OZ030-40CHOP
Zoro # G216151760

688.99

Additional $110.00 delivery surcharge applies per item.

Key Features

Standards

AS1418.2, ASME B30.16, CE

Pull to Lift Rated Load

58 lb

Mount Type

Hook Mounted - No Trolley

Body Material

Steel

Power Source

Manual

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: OZ030-40CHOP
Zoro #: G216151760
UPC #: -
Country of Origin: China

Dimensions

Chain Length: 40 ft
Maximum Lifting Length: 40 ft
Mfr. Warranty Length: 5 yr
Lifting Hook Opening Width: 1 13/16 in
Body Width: 8 29/32 in
Body Depth: 6 13/16 in

Details

Item: Manual Chain Hoist
Standards: AS1418.2, ASME B30.16, CE
Pull to Lift Rated Load: 58 lb
Mount Type: Hook Mounted - No Trolley
Body Material: Steel
Power Source: Manual
Chain Material: Steel
Body Finish: Powder Coated
For Outdoor Use: Yes
Color: Yellow
Includes Brake: Brake Included
Included Components: ID Tags, Safety Latch Hooks
Maximum Pulling Capacity: 3 ton
Chain Grade: Grade 80
Overload Protection Included: Yes
Product Type: Chain Hoist
Brake Type: Twin Pawl Weston Style Load Brake
Maximum Lifting Capacity: 6,000 lb
Lifting Hook Material: Alloy Steel
Features: Double-Reduction Gearing for Minimal Lifting Effort, Fully Enclosed Gearing Protects Against Contamination and Debris, Sealed Roller Bearing for Smooth, Maintenance-Free Operation, Thrust Bearing on Lower Hook Prevents Chain Twisting and Allows Easy Load Rotation, Unique Hand Wheel Design Allows Smooth Chain Operation from Multiple Angles
Operating Position: Horizontal, Vertical
Chain Finish: Zinc Plated
Resistance Properties: Corrosion Resistant
Headroom: 19 9/32 in
Number of Load Chains: 2
Lifting Hook Type: Swivel Hook with Safety Latch
Power Source - TS Only: Manual
Power Source - old: Manual

Description

Manual Chain Hoist, Chain Length 40 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 19 9/32 in, Includes Brake Brake Included, Lifting Hook Type Swivel Hook with Safety Latch, Maximum Lifting Capacity 6,000 lb, Maximum Lifting Length 40 ft, Mount Type Hook Mounted - No Trolley, Body Depth 6 13/16 in, Body Material Steel, Body Width 8 29/32 in, Brake Type Twin Pawl Weston Style Load Brake, Chain Grade Grade 80, Chain Material Steel
