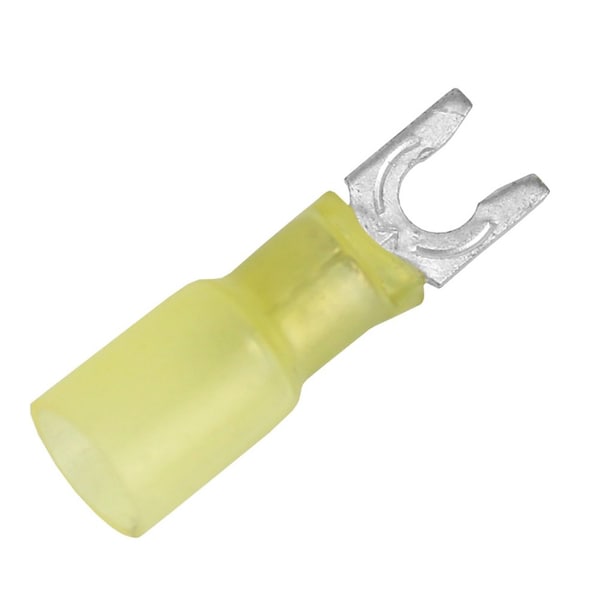

Pacer 12-10 AWG Heat Shrink Spade Terminal - No 8 Stud Size - 100 Pack
Mfr # TE10-8SLF-100
Zoro # G511891996
product price:Â
$
65.15
/ea
Key Features
Terminal Shape
Locking Fork
Maximum Voltage
600 V
Minimum Operating Temperature
-55 Degrees C
Insulation Color
Yellow
Insulation Coverage
Partial Coverage
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TE10-8SLF-100
- Zoro #
- G511891996
- UPC #
- 840248206488
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 10 AWG
- Stud Size
- #8
- Minimum Wire Size
- 12 AWG
Details
- Item
- Fork Terminal
- Terminal Shape
- Locking Fork
- Maximum Voltage
- 600 V
- Minimum Operating Temperature
- -55 Degrees C
- Insulation Color
- Yellow
- Insulation Coverage
- Partial Coverage
- Insulation Type
- Heat Shrink
- Contact Material
- Copper
- Maximum Operating Temperature
- 125 Degrees C
Description
12-10 AWG Heat Shrink Spade Terminal - #8 Stud Size - 100 Pack Fork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and offer a high level of protection. In an electrical environment, vibration is often a factor. Standard lock terminals will disconnect should the holding screw loosen. Locking fork terminals have a projection inside the forks, causing the terminals to snap onto the screw. Flanged fork terminals have the ends of the forks turned up. These designs will keep the terminal fastened even if the holding screw loosens. Features:High-quality tinned copper for corrosion resistance Efficient installation Creates solid connections Meets multiple compliances Benefits:Environmentally sealed Easy to Install Built for durability Long-lasting Specifications:Color: Yellow Wire AWG: 12-10 AWG Stud Size: #8 Terminal Pad Width inch: 0.39in Package Size: One-hundred included
