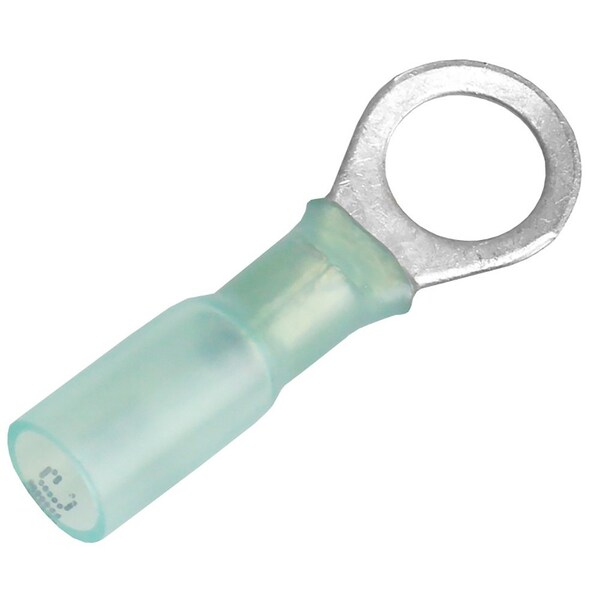

Pacer 16-14 AWG Heat Shrink Ring Terminal - 5/16in Stud Size - 100 Pack
Mfr # TE14-56R-100
Zoro # G311891998
product price:
$
49.29
/ea
Key Features
Insulation Coverage
Partial Coverage
Insulation Color
Blue
Terminal Shape
Standard Ring Tongue
Maximum Wire Size
14 AWG
Maximum Voltage
600 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TE14-56R-100
- Zoro #
- G311891998
- UPC #
- 840248206303
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 14 AWG
- Stud Size
- 5/16 in
- Minimum Wire Size
- 16 AWG
Details
- Item
- Ring Terminal
- Insulation Coverage
- Partial Coverage
- Insulation Color
- Blue
- Terminal Shape
- Standard Ring Tongue
- Maximum Voltage
- 600 V
- Minimum Operating Temperature
- -55 Degrees C
- Maximum Operating Temperature
- 125 Degrees C
- Standards
- UL & CSA Listed
- Contact Material
- Copper
- Insulation Type
- Heat Shrink
Description
16-14 AWG Heat Shrink Ring Terminal - 5/16in Stud Size - 100 Pack Ring terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use. Features:Tinned copper 600 Volts Operating temperature is -55°C to 125°C Highly compliant Benefits & Protections:Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications:Color: Blue Wire AWG: 16-14 AWG Stud Size inch: 5/16in Terminal Pad Width inch: 0.48in Package Size: One-hundred included
