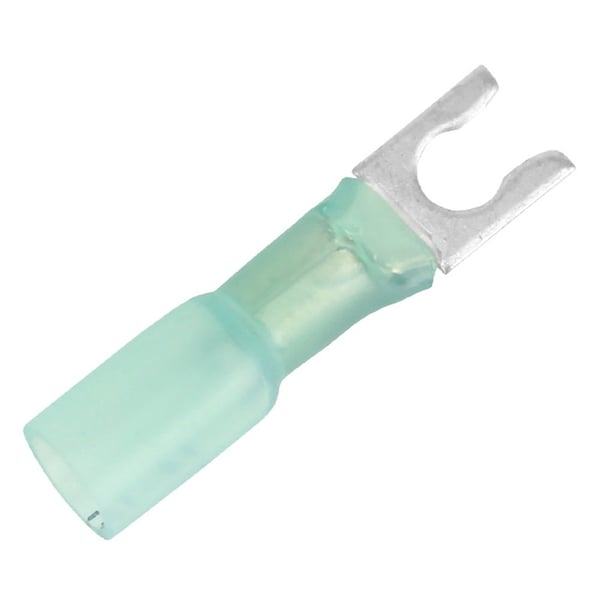

Pacer 16-14 AWG Heat Shrink Spade Terminal - No 10 Stud Size - 100 Pack
Mfr # TE14-10SLF-100
Zoro # G611891957
product price:Â $51.35
/eaKey Features
Stud Size
#10
Insulation Coverage
Partial Coverage
Maximum Wire Size
14 AWG
Maximum Operating Temperature
125 Degrees C
Insulation Color
Blue
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TE14-10SLF-100
- Zoro #
- G611891957
- UPC #
- 840248206600
- Country of Origin
- United States
Dimensions
- Stud Size
- #10
- Maximum Wire Size
- 14 AWG
- Minimum Wire Size
- 16 AWG
Details
- Item
- Fork Terminal
- Insulation Coverage
- Partial Coverage
- Maximum Operating Temperature
- 125 Degrees C
- Insulation Color
- Blue
- Insulation Type
- Heat Shrink
- Minimum Operating Temperature
- -55 Degrees C
- Contact Material
- Copper
- Terminal Shape
- Locking Fork
- Maximum Voltage
- 600 V
Description
16-14 AWG Heat Shrink Spade Terminal - #10 Stud Size - 100 Pack Fork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and offer a high level of protection. In an electrical environment, vibration is often a factor. Standard lock terminals will disconnect should the holding screw loosen. Locking fork terminals have a projection inside the forks, causing the terminals to snap onto the screw. Flanged fork terminals have the ends of the forks turned up. These designs will keep the terminal fastened even if the holding screw loosens. Features:High-quality tinned copper for corrosion resistance Efficient installation Creates solid connections Meets multiple compliances Benefits:Environmentally sealed Easy to Install Built for durability Long-lasting Specifications:Color: Blue Wire AWG: 16-14 AWG Stud Size: #10 Terminal Pad Width inch: 0.32in Package Size: One-hundred included
