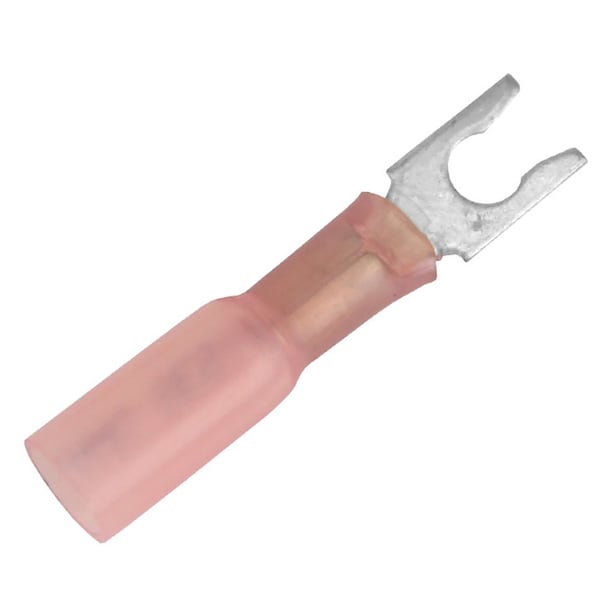

Pacer 22-18 AWG Heat Shrink Spade Terminal - No 8 Stud Size - 100 Pack

  • Mfr # TE18-8SLF-100

  • Zoro # G411892000


product price:  $51.89
/ea

Key Features

Contact Material
Copper
Maximum Operating Temperature
125 Degrees C
Insulation Coverage
Partial Coverage
Maximum Wire Size
18 AWG
Maximum Voltage
600 V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
TE18-8SLF-100
Zoro #
G411892000
UPC #
840248206631
Country of Origin
United States

Dimensions

Maximum Wire Size
18 AWG
Stud Size
#8
Minimum Wire Size
22 AWG

Details

Item
Fork Terminal
Contact Material
Copper
Maximum Operating Temperature
125 Degrees C
Insulation Coverage
Partial Coverage
Maximum Voltage
600 V
Insulation Type
Heat Shrink
Minimum Operating Temperature
-55 Degrees C
Terminal Shape
Locking Fork
Insulation Color
Red

Description

22-18 AWG Heat Shrink Spade Terminal - #8 Stud Size - 100 Pack Fork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and offer a high level of protection. In an electrical environment, vibration is often a factor. Standard lock terminals will disconnect should the holding screw loosen. Locking fork terminals have a projection inside the forks, causing the terminals to snap onto the screw. Flanged fork terminals have the ends of the forks turned up. These designs will keep the terminal fastened even if the holding screw loosens. Features:High-quality tinned copper for corrosion resistance Efficient installation Creates solid connections Meets multiple compliances Benefits:Environmentally sealed Easy to Install Built for durability Long-lasting Specifications Color: Red Wire AWG: 22-18 AWG Stud Size: #8 Terminal Pad Width inch: 0.32in Package Size: One-hundred included
